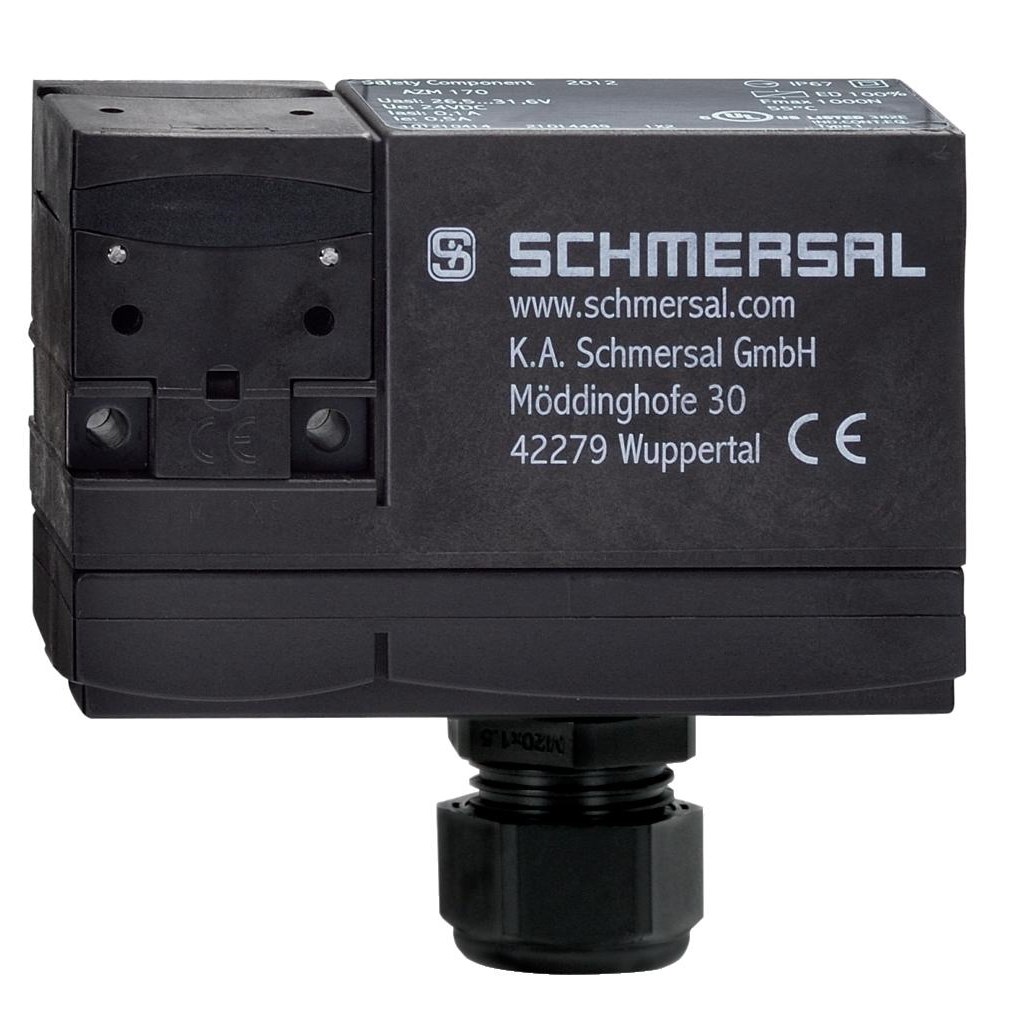

Schmersal 101143998 Solenid Interlock Switch 24VAC/VDC NC

Product Code: 101143998

  • Operates at 24 VAC/VDC with 1000 A current
  • Durable with 1 million mechanical cycles
  • IP67 protection, ideal for harsh environments
  • Compact size: 30mm x 90mm x 84mm
  • Meets IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
2
Rated Voltage (Ur)
24V AC/DC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
84mm
Weight
0.27kg
Width
90mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
