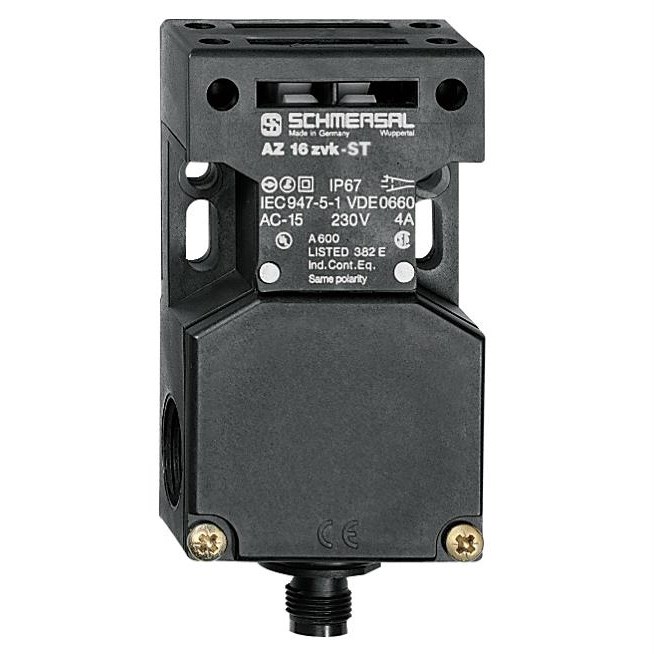

Schmersal 101143122 Safety Switch with Separate Actuator 230VAC 1NO+1NC

Product Code: 101143122

  • Operates at 230 VAC, 4 A with 1NO+1NC contacts
  • Durable with 1 million mechanical cycles
  • IP67 rated for robust protection
  • Screw mounting for secure installation
  • Works in -30 to 80°C, glass fibre reinforced housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 16

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
Connector plug M12, 4-pole, (A-coding)

Mechanical

Cable Entry
3 x M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
90 mm
Weight
120 g
Width
52 mm

Environmental

Operating Temperature
-30 to 80 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
