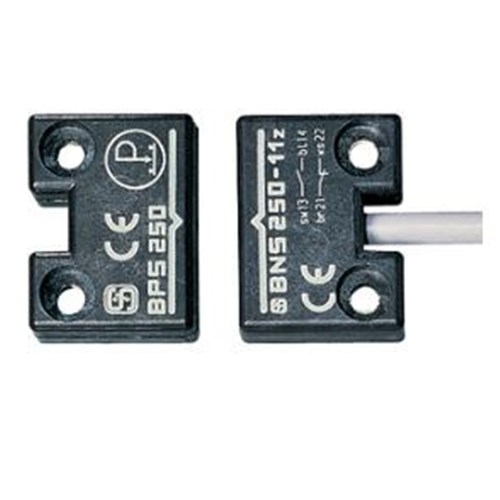

Schmersal 101142981 Magnetic Safety Sensor 9m Cable

Product Code: 101142981

  • Operates at 24 VDC with 0.1 A current
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Compact sensor size: 13 x 33 x 25 mm
  • Withstands shocks up to 30 g/11 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 250

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.1A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 250
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.326kg
Width
33mm
Cable Length
9m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
