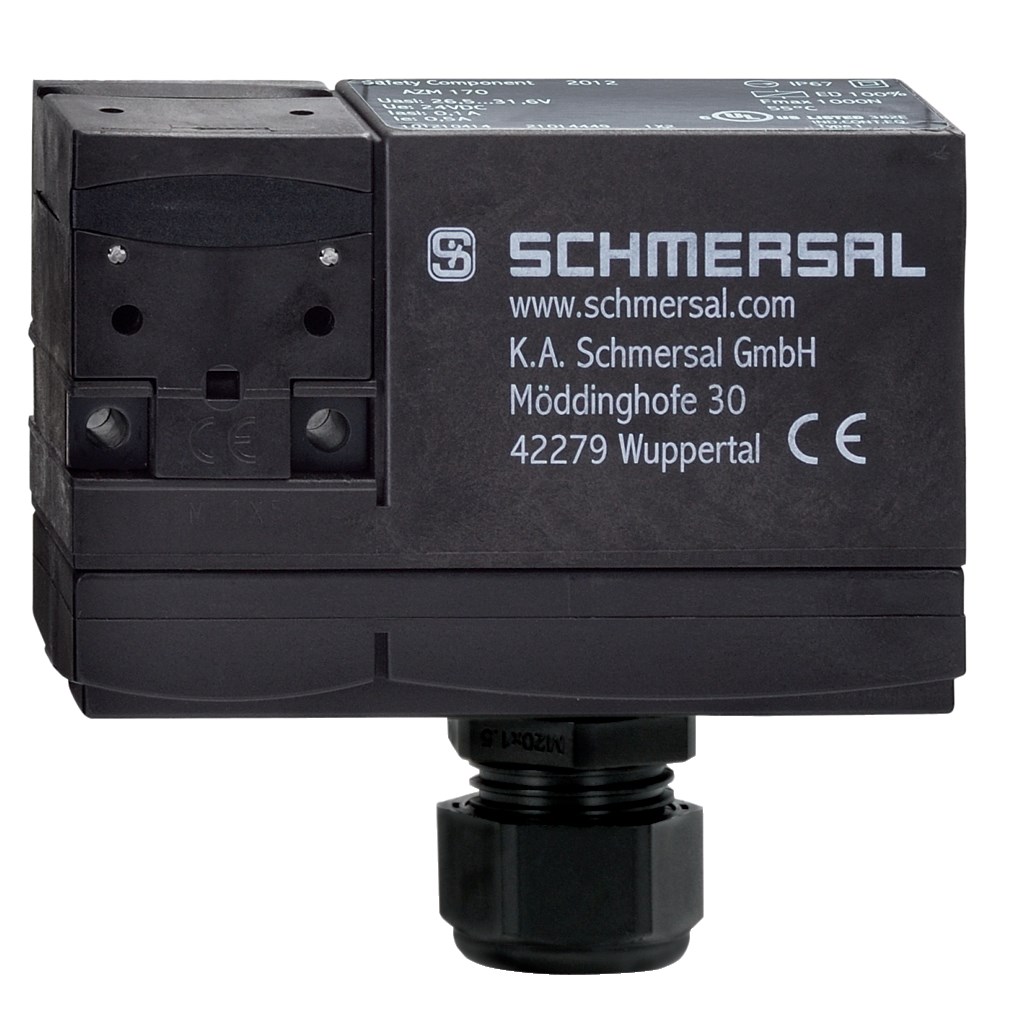

Schmersal 101141776 Solenid Interlock Switch 230VAC NC

Product Code: 101141776

  • Rated for 230 VAC and 1000 A
  • Durable with 1 million cycles
  • IP67 protection for harsh environments
  • Slow action with NC contact configuration
  • Screw mounting, reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Voltage (Ur)
230V AC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
84mm
Weight
0.31kg
Width
90mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
