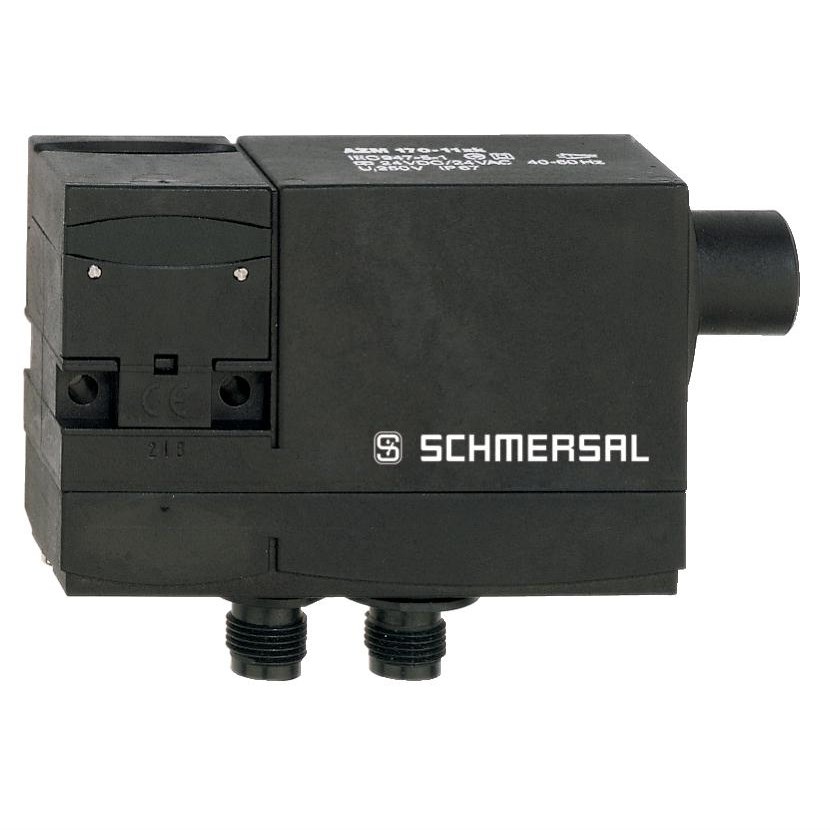

Schmersal 101141428 Solenid Interlock Switch 230VAC

Product Code: 101141428

  • Durable plastic, glass fibre reinforced housing
  • IP67 protection for harsh environments
  • Operates in -25 to 60°C temperature range
  • Long mechanical life: 1 million cycles
  • Certified by IFA, cULus, CCC, UKCA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC

Mechanical

Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
75.5 mm
Weight
308 g
Width
90 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67
