Products

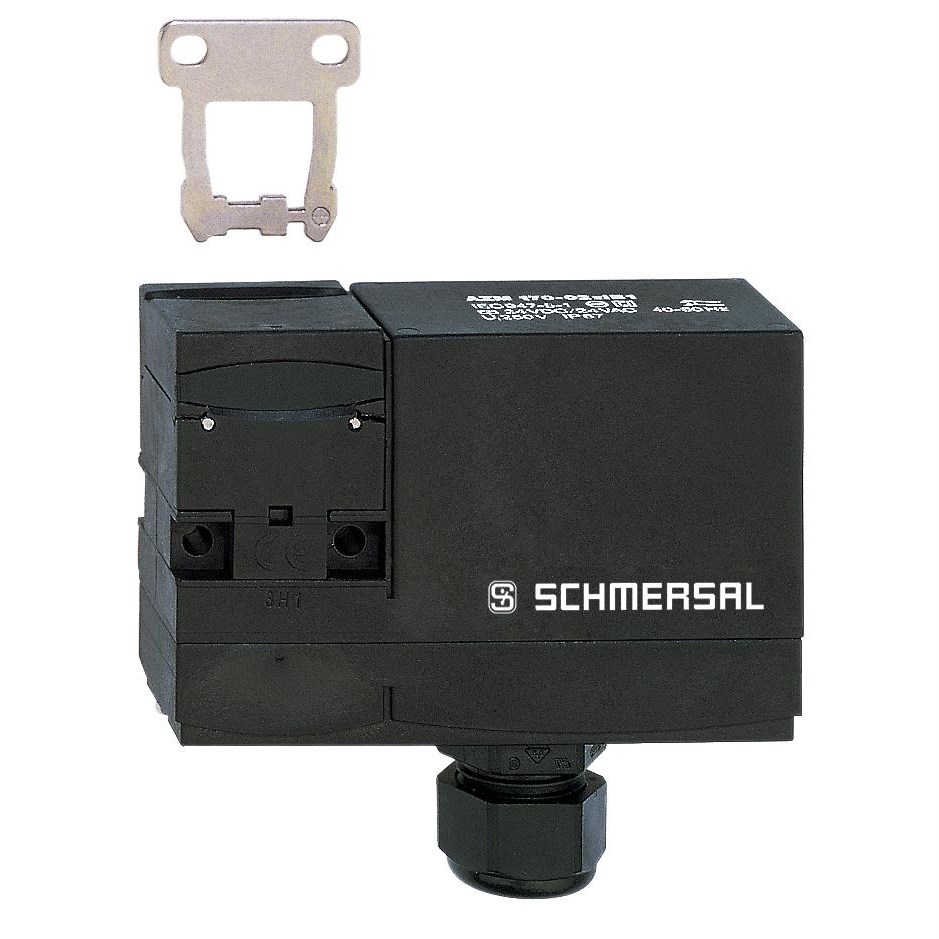

Schmersal 101140812 Solenid Interlock Switch 24VAC/VDC 2NC

Product Code: 101140812

  • 24 VAC/VDC rated voltage
  • Durable with 1M mechanical cycles
  • IP67 protection for harsh environments
  • Operates from -25 to 60°C
  • Reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
84 mm
Weight
295 g
Width
90 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
