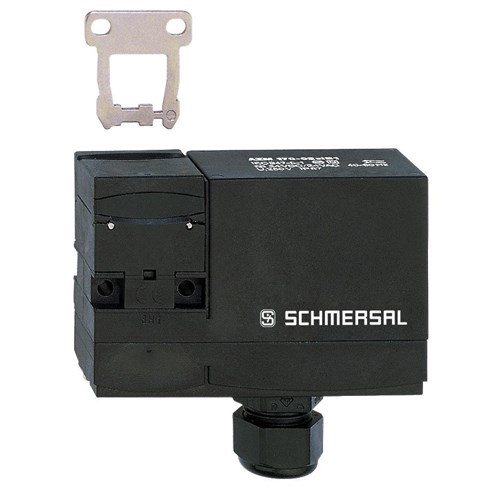

Schmersal 101140797 Solenid Interlock Switch 24VAC/VDC 1NO+1NC

Product Code: 101140797

  • Operates at 24 VAC/VDC with slow action
  • Durable plastic housing, IP67 rating
  • Stainless steel actuator for reliability
  • Long mechanical life of 1 million cycles
  • Complies with IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
84 mm
Weight
288 g
Width
90 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67
