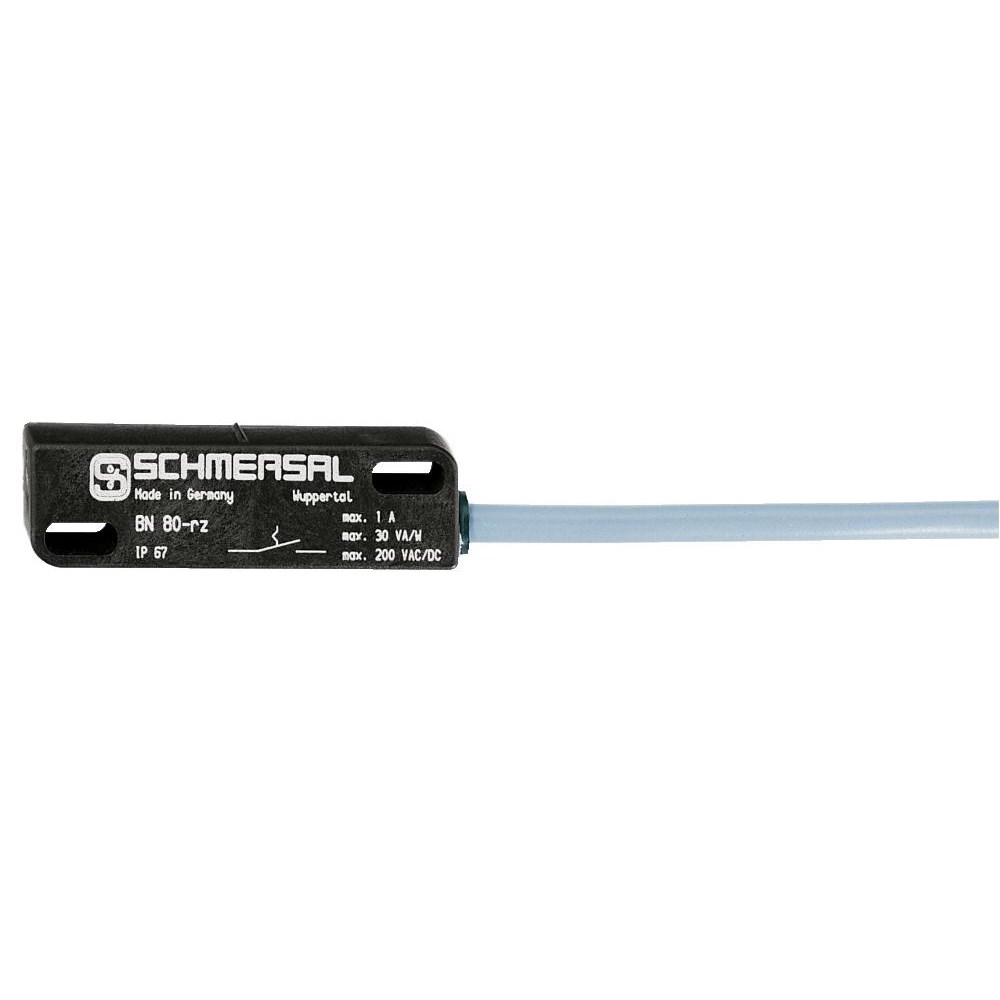

Schmersal 101139647 Magnetic Reed Switch 1m L Cable 1.5A BP 10 Cable Terminal

Product Code: 101139647

  • Rated for 200 VAC, 1.5 A
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Operates in -25 to 75°C temperature range
  • Long mechanical life of 1 billion operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
BN 80

Electrical

Switching Current
1.5A
Switching Voltage
200V AC, 200V DC
Electrical Connection
Pre-wired cable

Mechanical

Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
9mm
Height
13mm
Weight
0.024kg
Width
44mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 75°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
