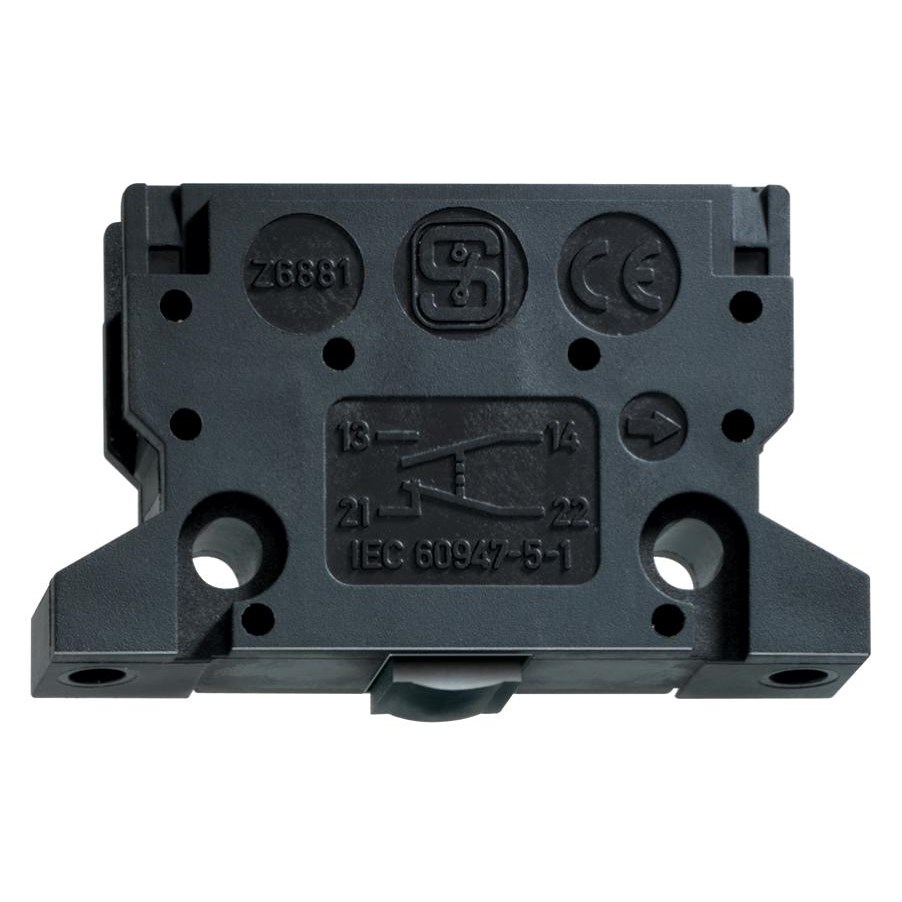

Schmersal 101138614 Micro Switch 1NO-1NC Glass Fibre Reinforced Thermoplastic

Product Code: 101138614

  • Rated for 10 A current
  • High precision with 0.02 mm accuracy
  • Durable glass fibre reinforced thermoplastic housing
  • IP40 protection against solid objects
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Micro Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V
Switching Element
Change-over contact with double break with two separated contact bridges (positive break)
Switching Principle
Slow action
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Contact Material
Silver
Housing Material
Glass-fibre, reinforced thermoplastic

Environmental

IP Rating
IP40,IP00
Ambient Temperature
-30°C to 85°C
