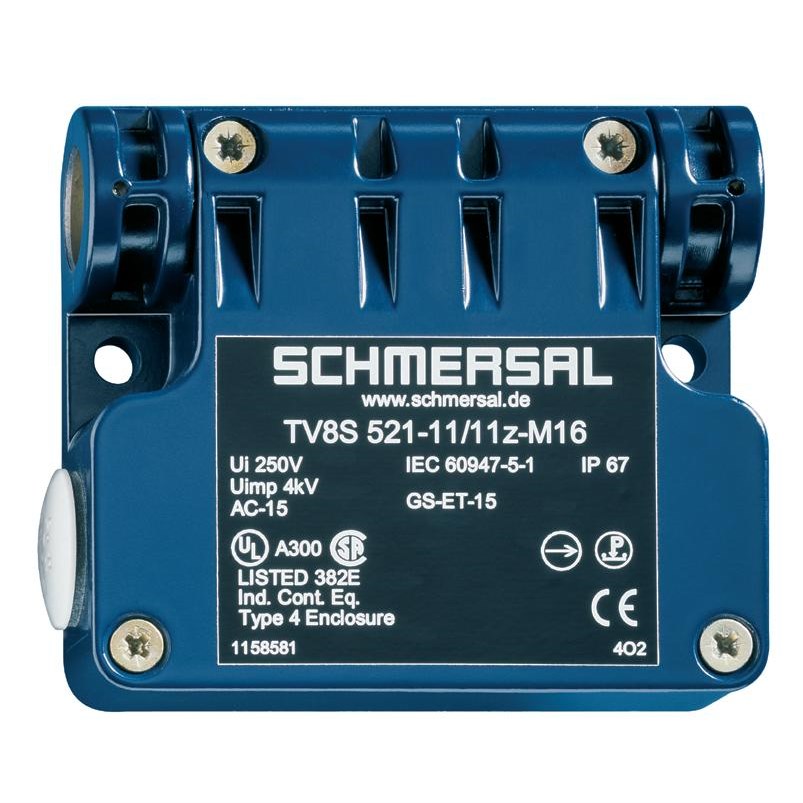

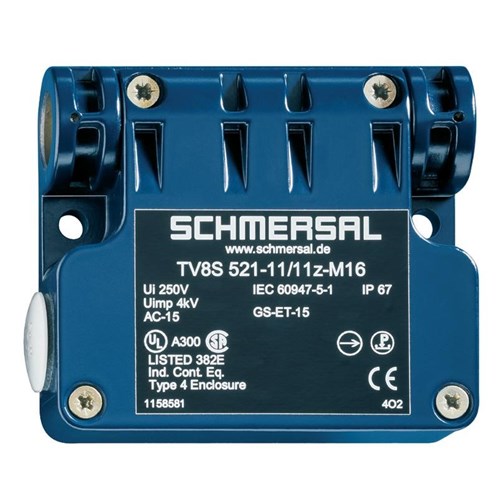

Schmersal 101138422 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 101138422

  • Operates at 230 VAC, 4 A
  • Durable aluminium housing, IP65 rated
  • Long mechanical life: 1 million cycles
  • Compact size: 27x92x81.5 mm
  • cULus and EC002591 approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Hinge Switch
Brand
Schmersal
Series
TV8S 521

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A, 1A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M16 x 1.5
Housing Material
Aluminium

Dimensions & Physical Data

Depth
27mm
Height
81.5mm
Weight
0.268kg
Width
92mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
