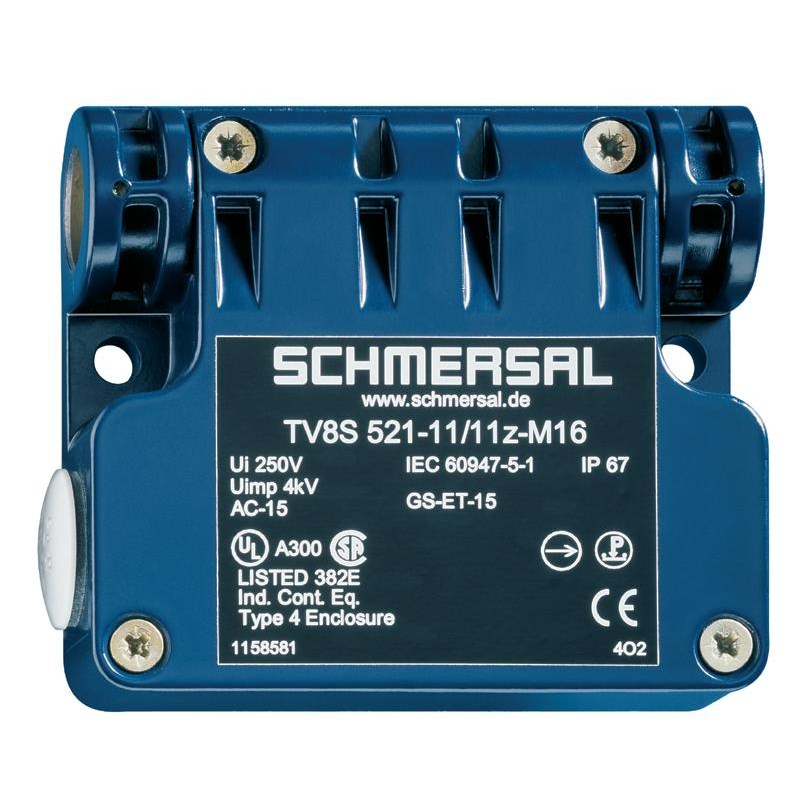

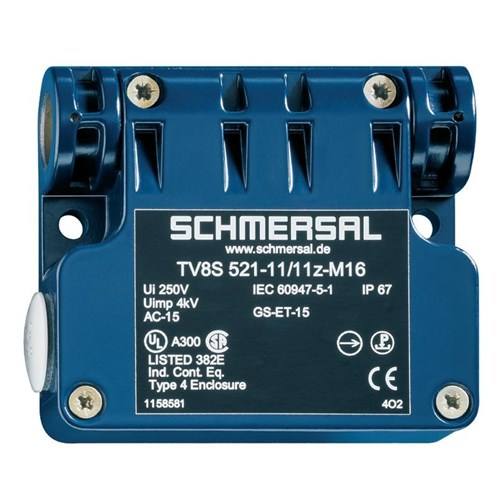

Schmersal 101138421 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 101138421

  • Rated voltage of 230 VAC, current of 4 A
  • Durable aluminium housing with IP65 protection
  • 1NO+1NC contact configuration for versatility
  • Mechanical life of 1,000,000 cycles ensures longevity
  • Operates in temperatures from -25 to 65°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Hinge Switch
Brand
Schmersal
Series
TV8S 521

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A, 1A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M16 x 1.5
Housing Material
Aluminium

Dimensions & Physical Data

Depth
27mm
Height
81.5mm
Weight
0.274kg
Width
92mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
