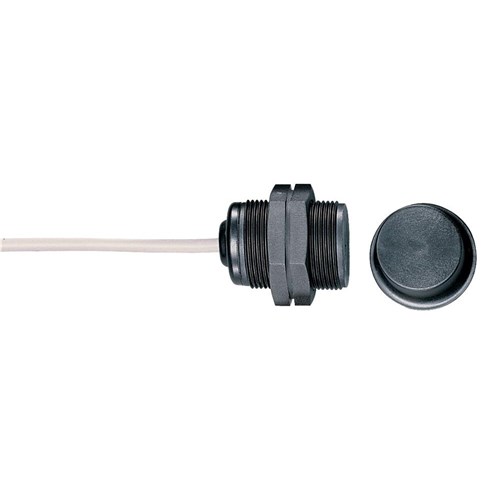

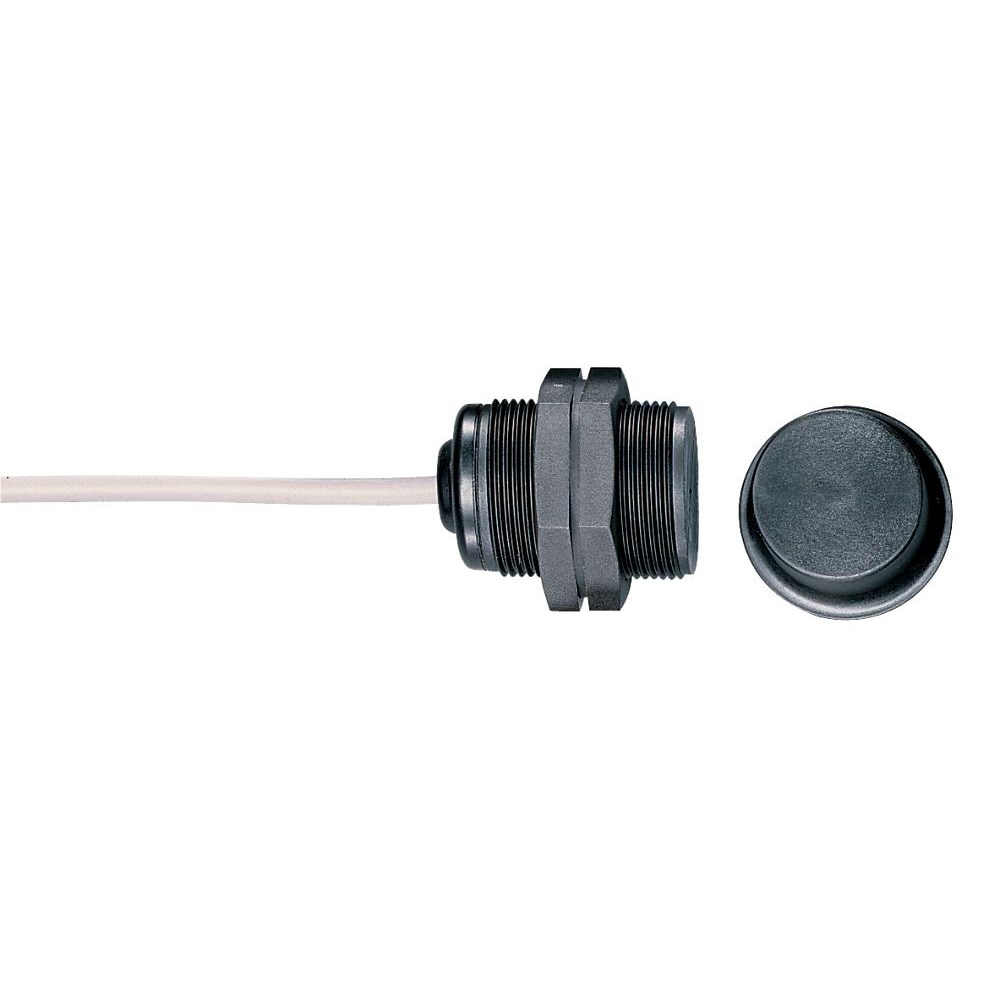

Schmersal 101138261 Magnetic Safety Sensor 1m Cable

Product Code: 101138261

  • Operates at 24 VDC with 0.01 A current
  • Durable with 25 million mechanical cycles
  • IP67 protection against dust and water
  • Compact 44 mm sensor size
  • Made from robust glass fibre reinforced thermoplastic
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 303

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 303; BPS 300; BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
44mm
Weight
0.066kg
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
