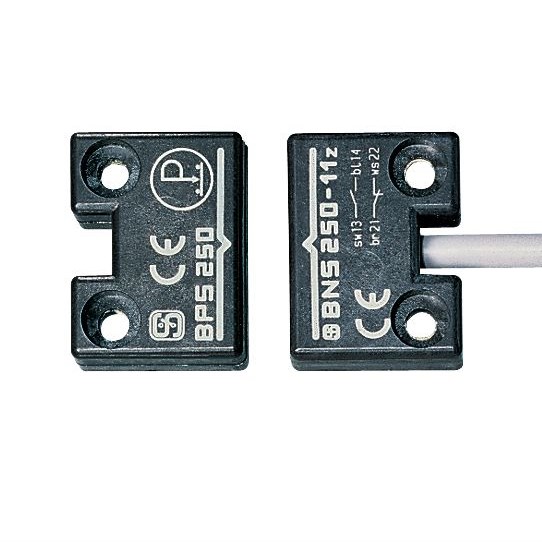

Schmersal 101138010 Magnetic Safety Sensor 6m Cable

Product Code: 101138010

  • Operates at 24 VDC and 0.1 A
  • Magnet actuator with IP67 protection
  • Durable glass fibre reinforced thermoplastic housing
  • 6 m cable length for flexible installation
  • Complies with BG-GS-ET-14, cULus, EN IEC 60947-5-3 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 250

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.1A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 250
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.215kg
Width
33mm
Cable Length
6m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
