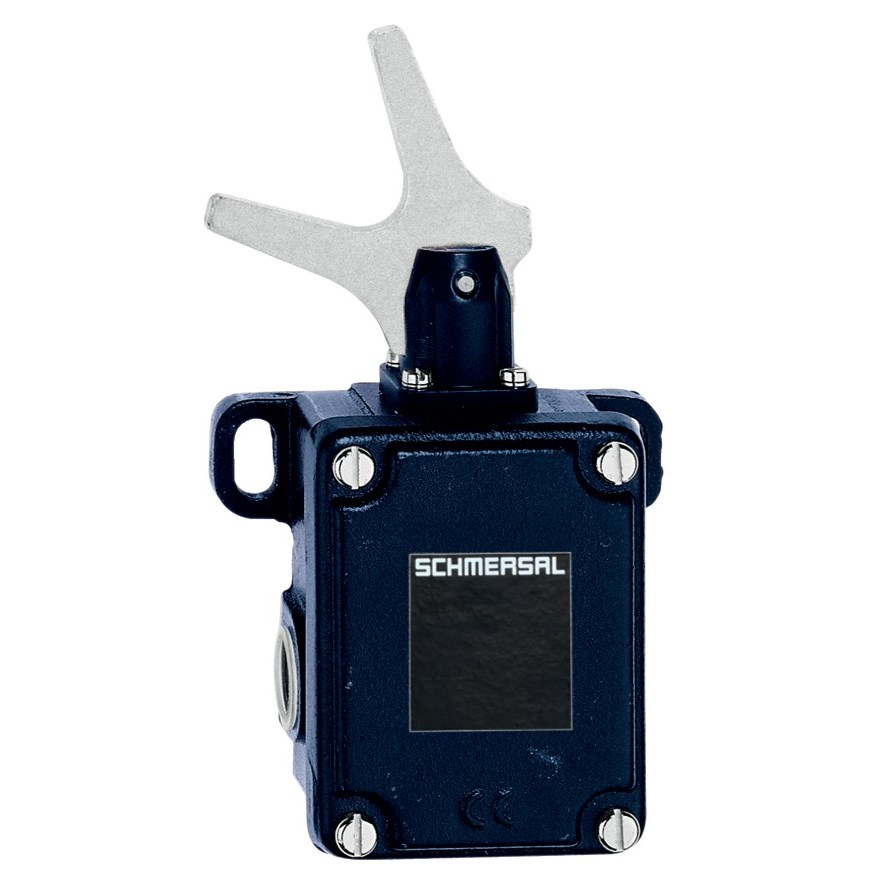

Schmersal 101137935 Position Switch Fork Roller Lever NO-NC Grey Cast Iron Galvanised

Product Code: 101137935

  • Rated current of 16A
  • Durable grey cast iron housing
  • IP65 protection for harsh environments
  • Mechanical switching with fork roller lever
  • Long mechanical life, 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 fork lever 2C

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Fork Lever
Contact Material
AgSnO
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
194mm
Weight
1,270g
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
