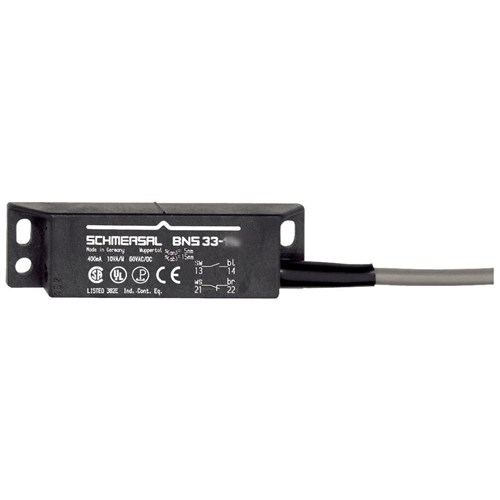

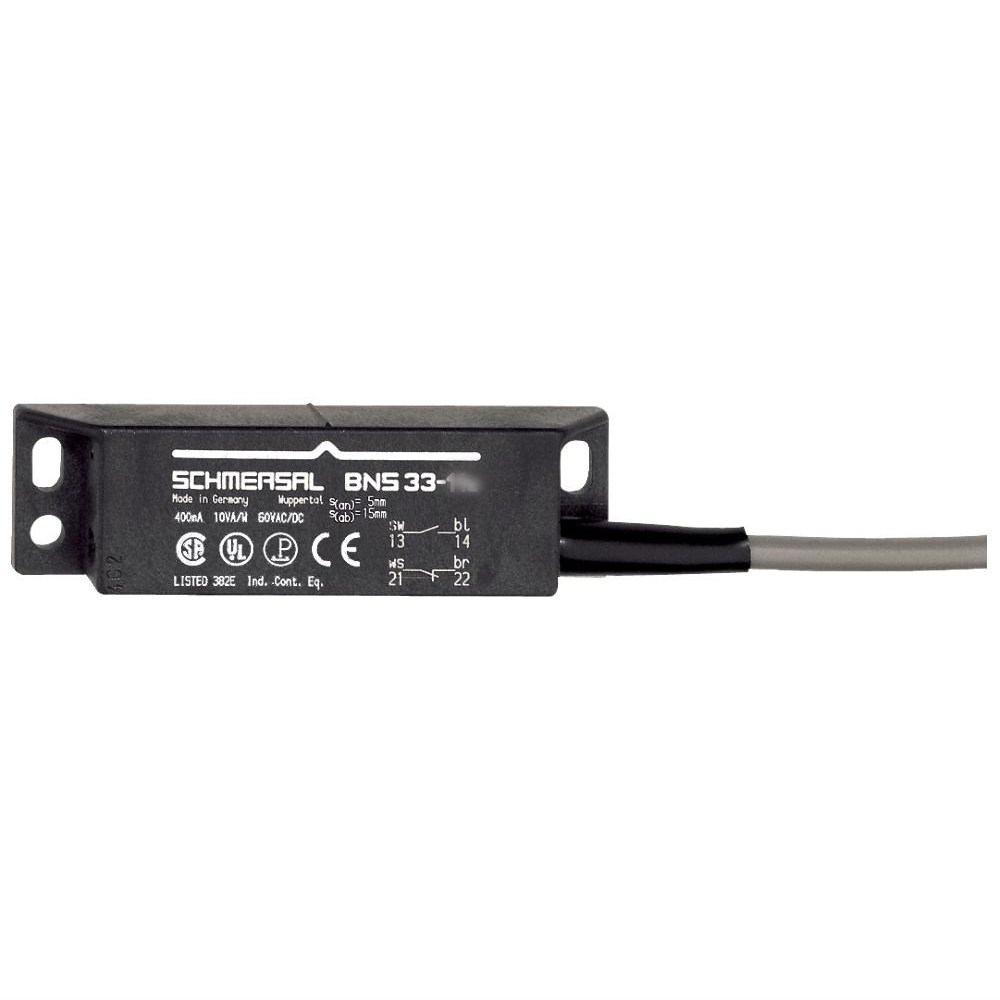

Schmersal 101137364 Magnetic Safety Sensor NC

Product Code: 101137364

  • Durable glass fibre reinforced thermoplastic housing
  • High protection rating: IP67, IP69K
  • Long mechanical life: 1 million cycles
  • Compact size: 30 mm L x 121.5 mm H
  • Operates at up to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 33

Electrical

No. of N/C Contacts
2

Mechanical

Actuator Type
BPS 33, BPS 33-2326
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm (Length)
Height
25mm
Weight
0.000195kg
Width
88mm
Cable Length
5m

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
