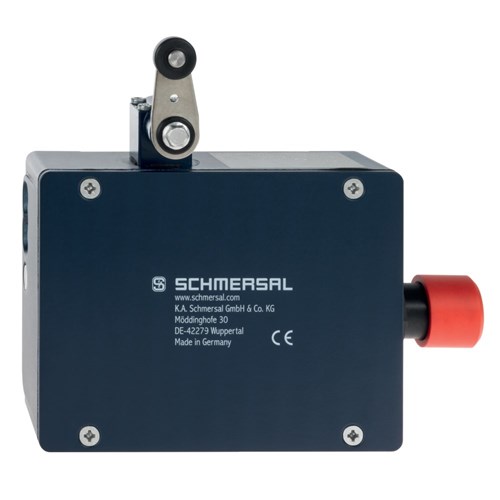

Schmersal 101136525 Solenid Interlock Switch 24VAC/VDC

Product Code: 101136525

  • Durable aluminium housing, IP67 protection
  • Supports 24 VAC/VDC, 10 W power
  • High mechanical life: 1 million cycles
  • Complies with cULus and UKCA standards
  • Operates in -25 to 50°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC
Terminal Type
Screw terminals

Mechanical

Actuator Type
Ball latch (adjustable, 400 N)
Cable Entry
2 x M20 x 1.5
Guard Locking Force
3500 N
Housing Material
Aluminium (painted)

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
905 g
Width
130 mm

Environmental

Operating Temperature
-25 to 50 °C
IP Rating
IP65, IP67

Documents

IPD Product Catalogue V17
