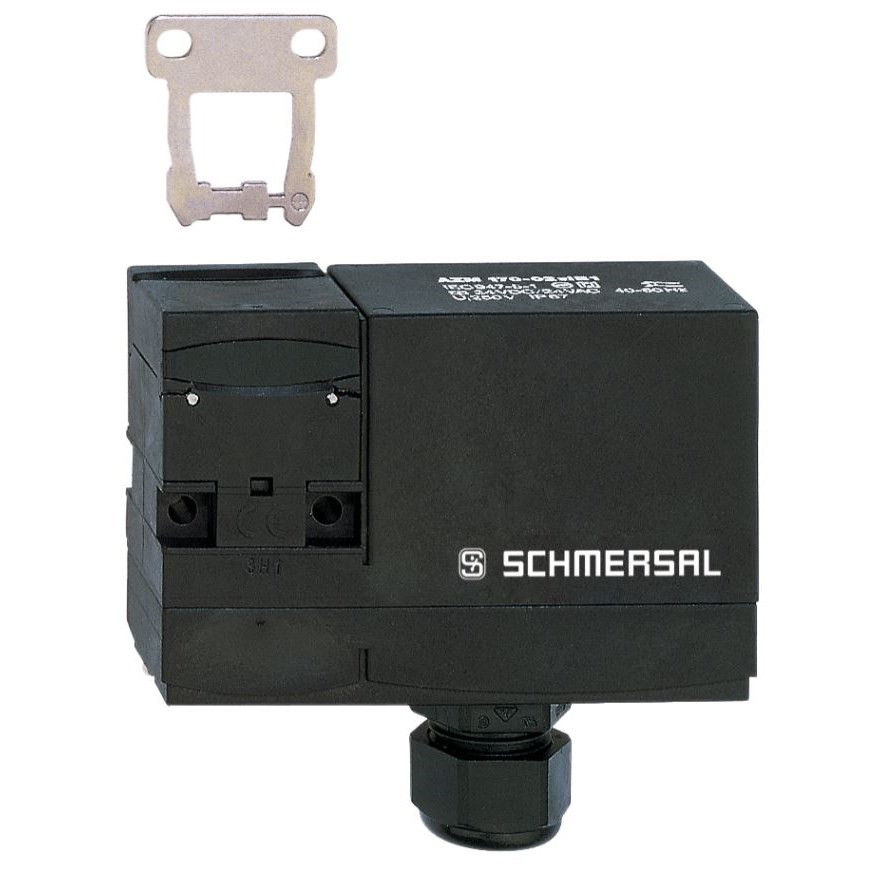

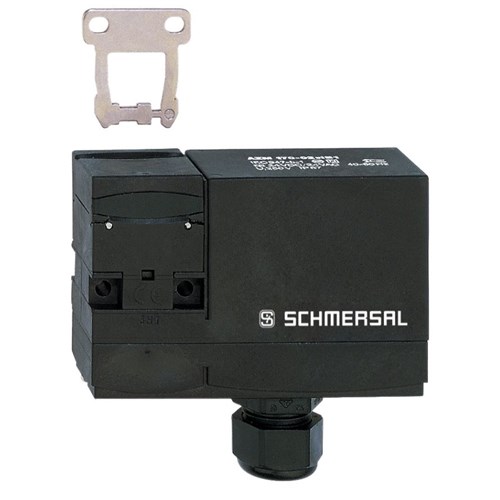

Schmersal 101136368 Solenid Interlock Switch 230VAC 2NC

Product Code: 101136368

  • Operates on 230 VAC with slow action
  • Durable with 1 million cycle lifespan
  • Robust IP67 protection rating
  • Reinforced thermoplastic housing
  • Complies with IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
230 V AC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
84 mm
Weight
315 g
Width
90 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67
