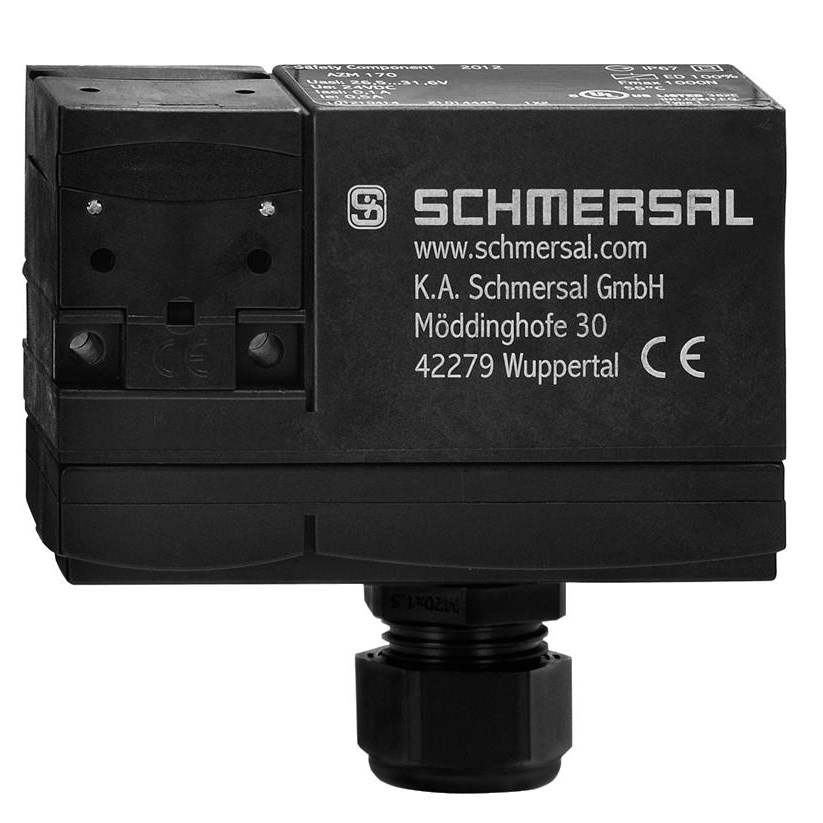

Schmersal 101136319 Solenid Interlock Switch 230VAC 1NO+1NC

Product Code: 101136319

  • 230 VAC solenoid with 1NO+1NC contacts
  • Durable design with 1M cycles mechanical life
  • IP67 rated for robust environmental protection
  • Flange mounting with glass fibre reinforced plastic housing
  • Complies with IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Voltage (Ur)
230V AC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
84mm
Weight
0.32kg
Width
90mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
