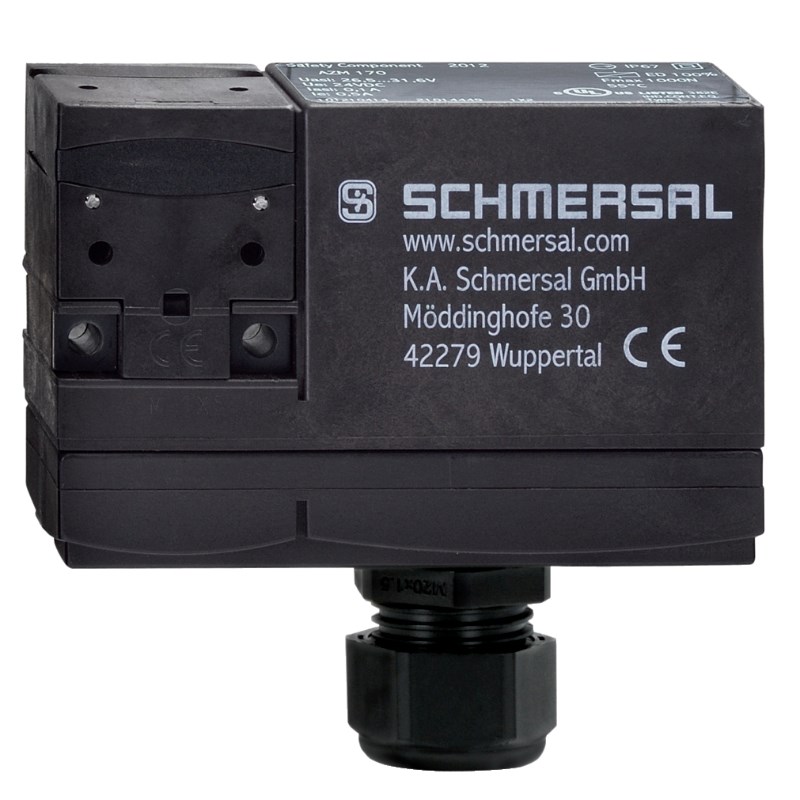

Schmersal 101136318 Solenid Interlock Switch 110VAC 1NO+1NC

Product Code: 101136318

  • Durable plastic, glass fibre reinforced housing
  • High protection rating of IP67
  • Long mechanical life: 1,000,000 cycles
  • Versatile 1NO+1NC contact configuration
  • Complies with IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Voltage (Ur)
110V AC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
84mm
Weight
0.272kg
Width
90mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
