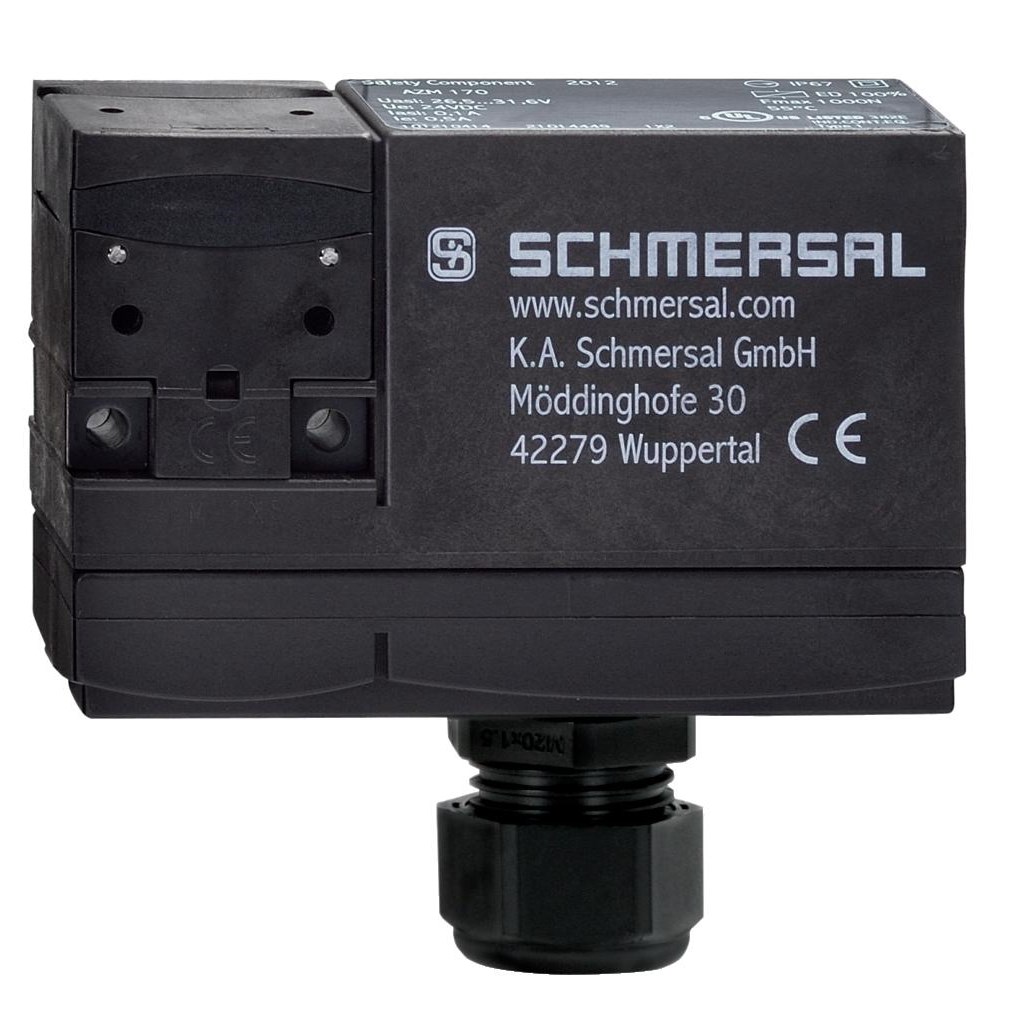

Schmersal 101136315 Solenid Interlock Switch 110VAC 2NC

Product Code: 101136315

  • Durable plastic housing, IP67 protection
  • Long lifespan with 1M mechanical cycles
  • Slow action with 2NC contact config
  • Operates at up to 60°C efficiently
  • Complies with IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
2
Rated Voltage (Ur)
110V AC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
84mm
Weight
0.274kg
Width
90mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
