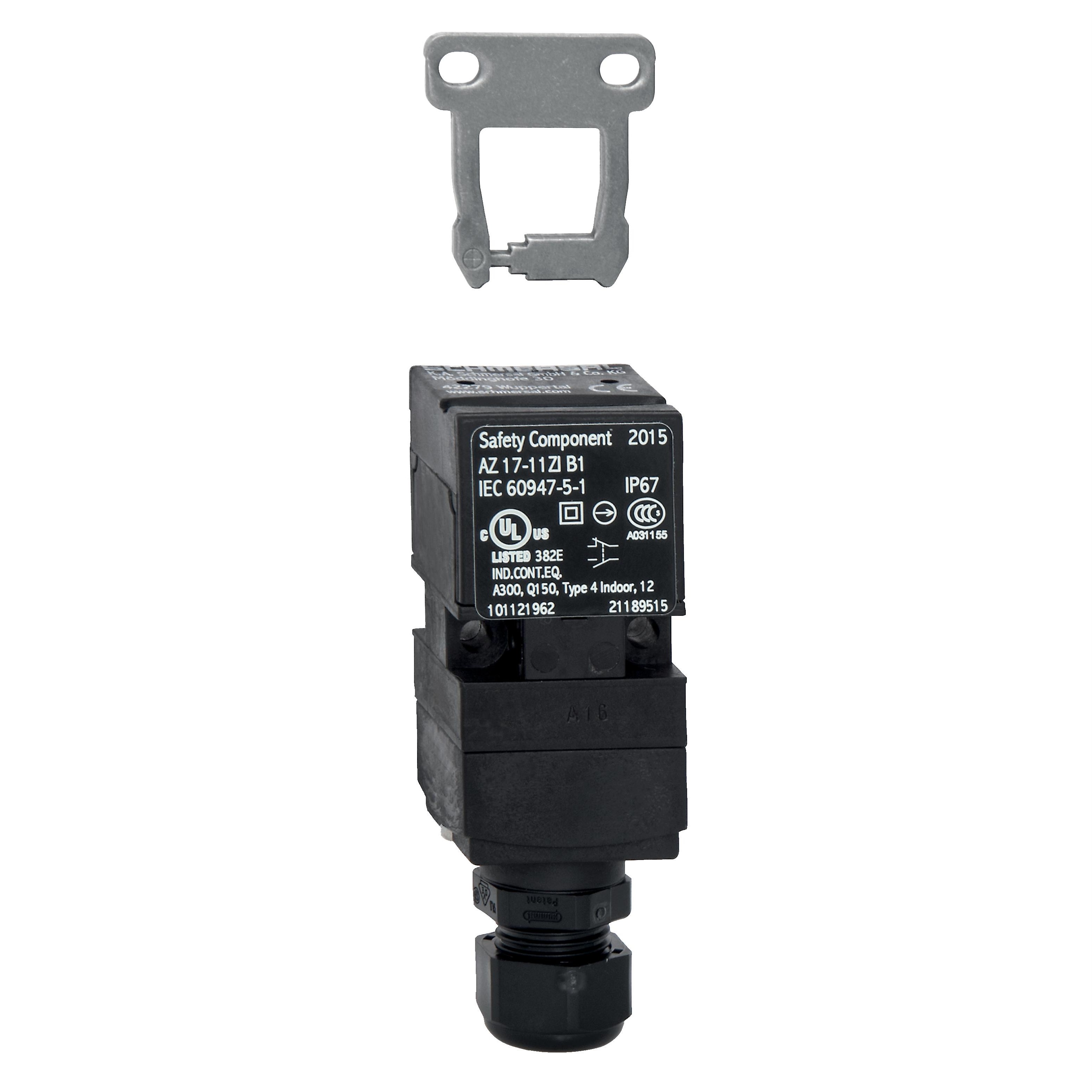

Schmersal 101136308 Safety Switch with Separate Actuator 230VAC 2NC

Product Code: 101136308

  • Operates at 230 VAC, 4 A
  • Durable with 1M mechanical cycles
  • IP67 rated for robust protection
  • Slow action with positive break NC contact
  • Compact size: 30x30x85 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
2
Terminal Type
IDC method of termination

Mechanical

Cable Entry
M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
85mm
Weight
0.095kg
Width
30mm

Environmental

IP Rating
IP67

Documents

IPD Product Catalogue V17
