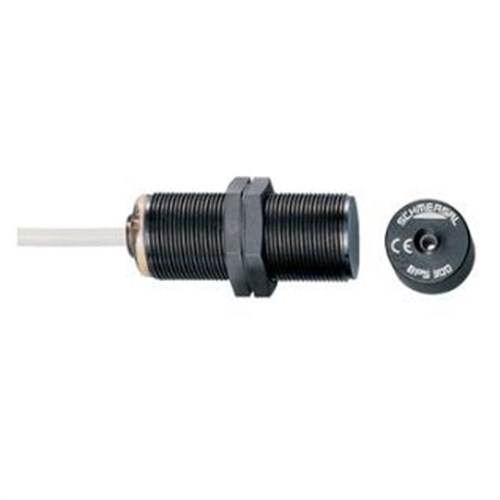

Schmersal 101136217 Magnetic Safety Sensor 1.5m Cable

Product Code: 101136217

  • Operates on 24 VDC with 3 A current
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Compact 78 mm sensor size
  • Meets BG-GS-ET-14, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 300

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
0
Rated Current (In)
0.125
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 303; BPS 300; BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
78mm
Weight
0.145kg
Cable Length
1.5m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
