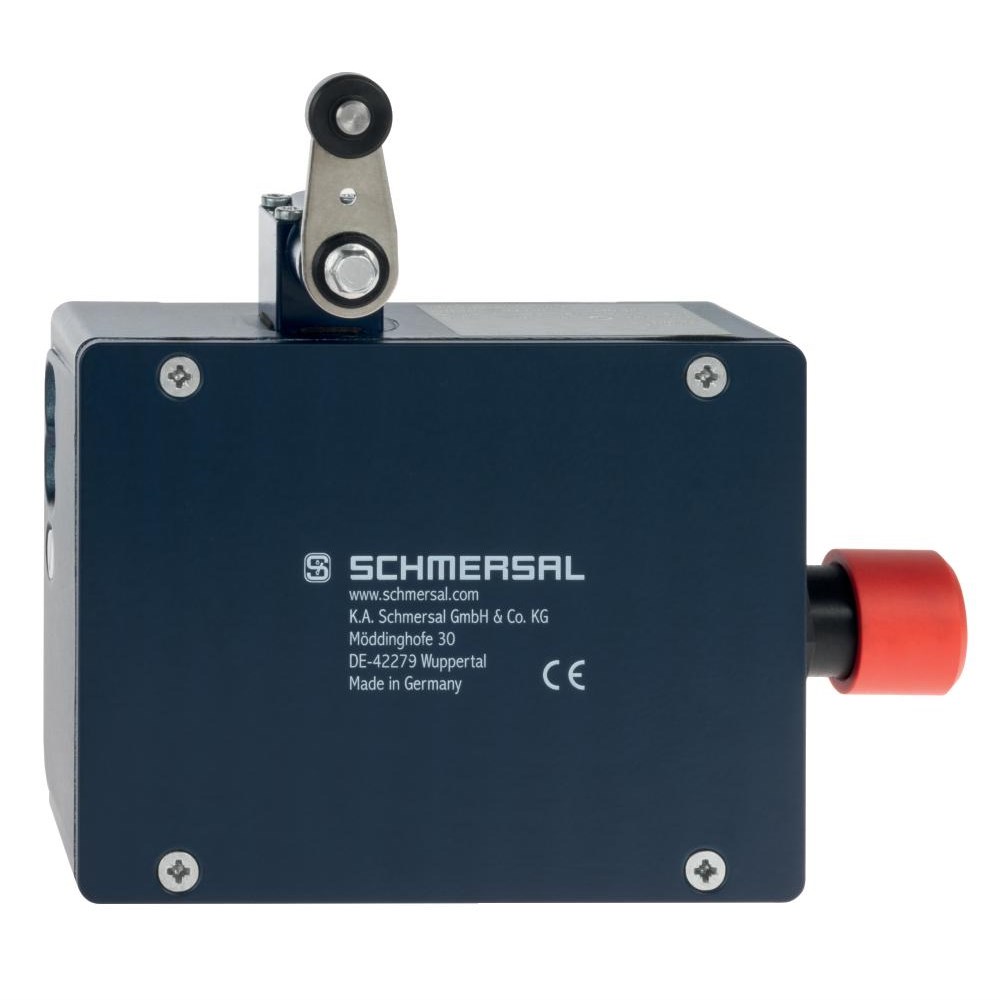

Schmersal 101136087 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101136087

  • Aluminium housing with IP54 protection
  • Operates at -25 to 50°C
  • NO+NC contact configuration
  • Mechanical life of 1 million cycles
  • Complies with cULus, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
50 mm
Height
120 mm
Weight
985 g

Environmental

Operating Temperature
-25_+50
IP Rating
IP54

Documents

IPD Product Catalogue V17
