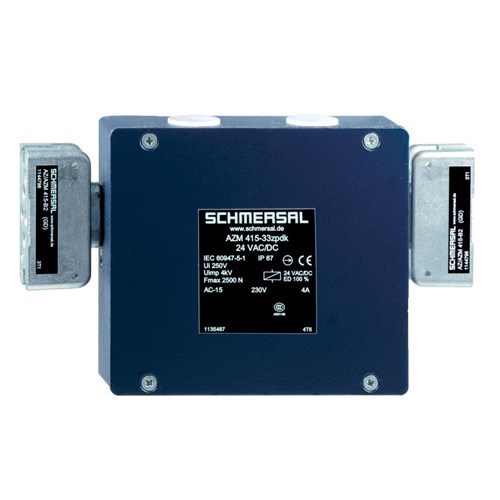

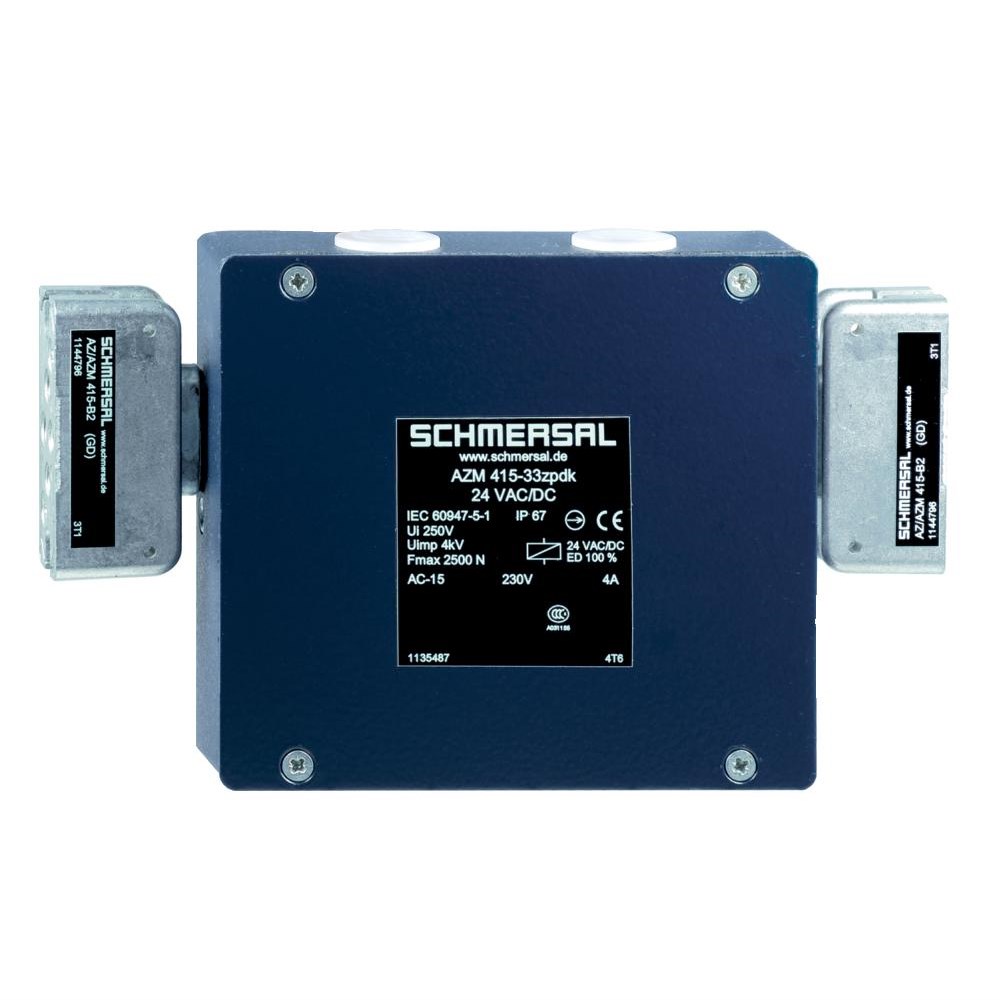

Schmersal 101135487 Solenid Interlock Switch 24VAC/VDC

Product Code: 101135487

  • Durable aluminium housing with IP67 protection
  • Operates in -25 to 50°C temperature range
  • Long mechanical life of 1,000,000 cycles
  • Compliant with cULus and UKCA standards
  • Slow action with actuating speed of 0.2 m/s
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
3
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
2,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
125 mm
Weight
1,235 g
Width
141 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
