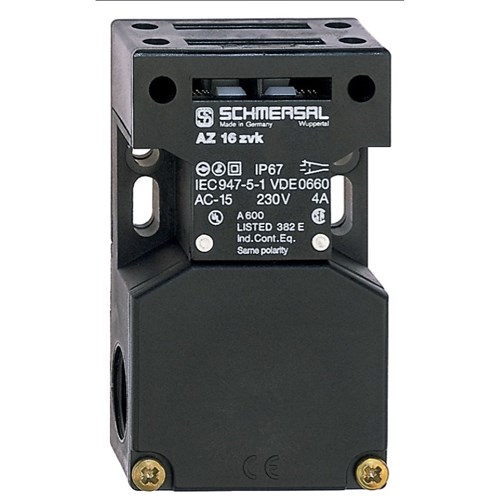

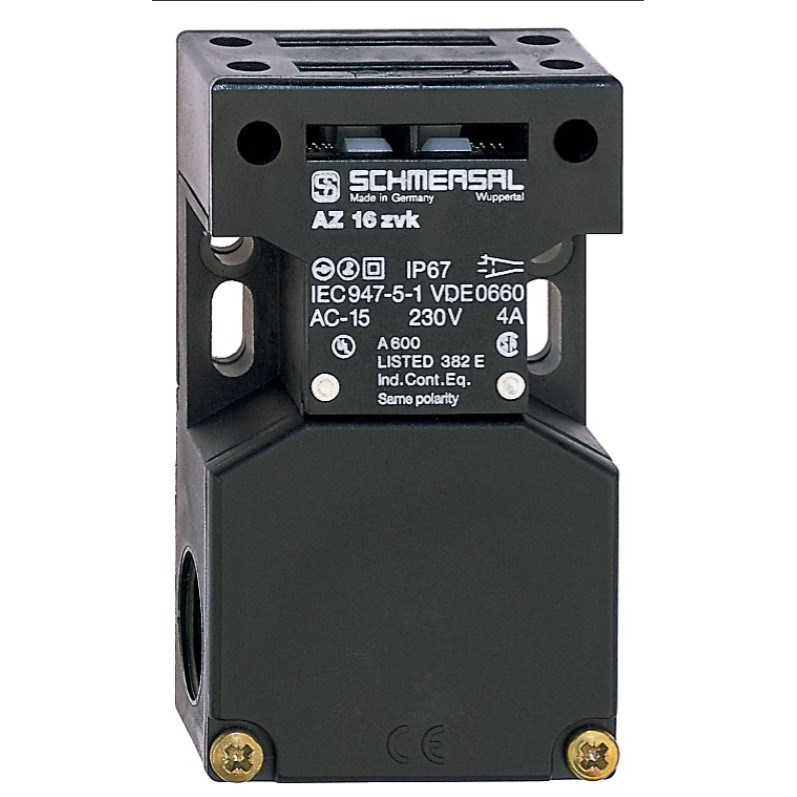

Schmersal 101134000 Safety Switch with Separate Actuator 230VAC 1NO+2NC

Product Code: 101134000

  • 230 VAC, 4 A rated for reliable performance
  • Durable with 1 million mechanical cycles
  • IP67 protection for harsh environments
  • Compact size: 30x52x90 mm
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 16

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
90mm
Weight
0.125kg
Width
52mm

Environmental

IP Rating
IP67

Documents

IPD Product Catalogue V17
