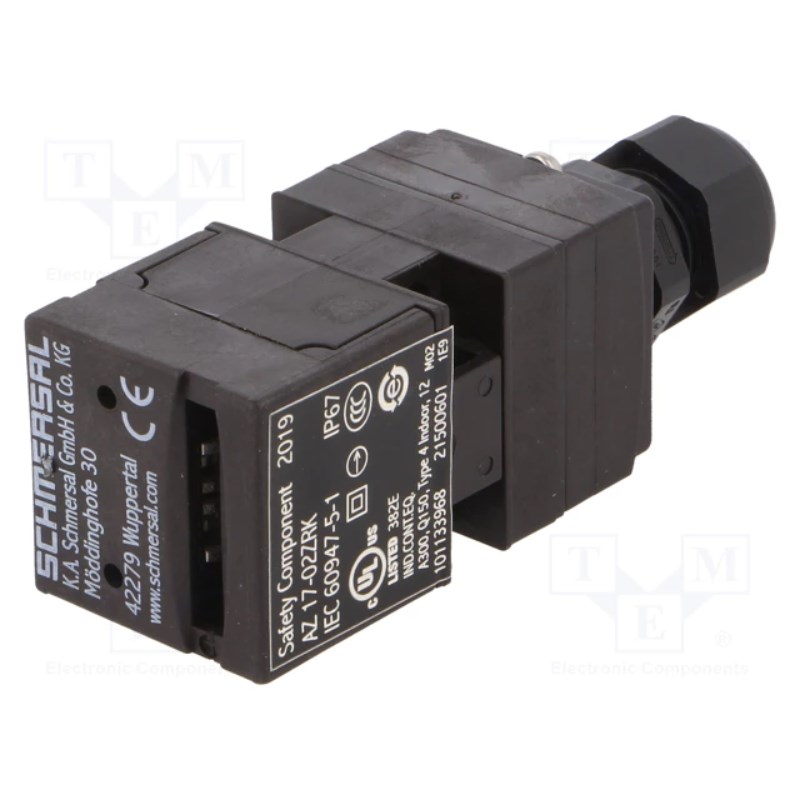

Schmersal 101133968 Safety Switch with Separate Actuator 230VAC 2NC

Product Code: 101133968

  • 230 VAC rated voltage, 4 A current capacity
  • IP67 protection for harsh environments
  • Durable with 1 million mechanical cycles
  • Compact size: 30x30x60 mm
  • Slow action with positive break NC contact
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
2
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
IDC method of termination

Mechanical

Cable Entry
M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
60 mm
Weight
85 g
Width
30 mm

Environmental

Operating Temperature
-30 to 80 °C
IP Rating
IP67
