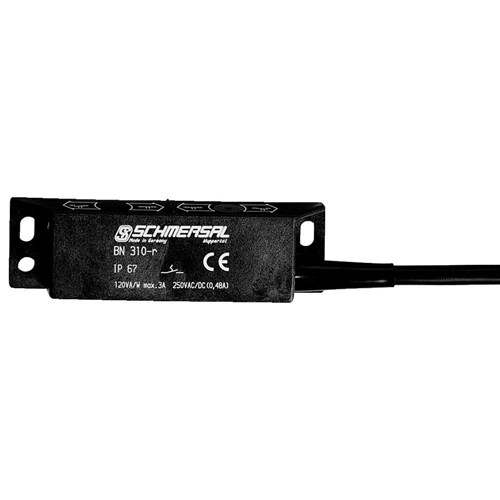

Schmersal 101133842 Magnetic Reed Switch 1m L Cable 3A BP 10 Cable Terminal

Product Code: 101133842

  • Rated for 250 VAC, 3 A
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Operates in -25 to 75°C range
  • Long mechanical life: 1 billion operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
BN 31/310

Electrical

Configuration Type
Normally open contact (NO)
No. of N/C Contacts
0
No. of N/O Contacts
1
Switching Current
3:00 AM
Switching Voltage
250 V AC, 250 V DC
Electrical Connection
Pre-wired cable

Mechanical

Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13 mm
Height
25 mm
Weight
65 g
Width
88 mm
Cable Length
1 m

Environmental

Operating Temperature
-25 to 75 degC
IP Rating
IP67
