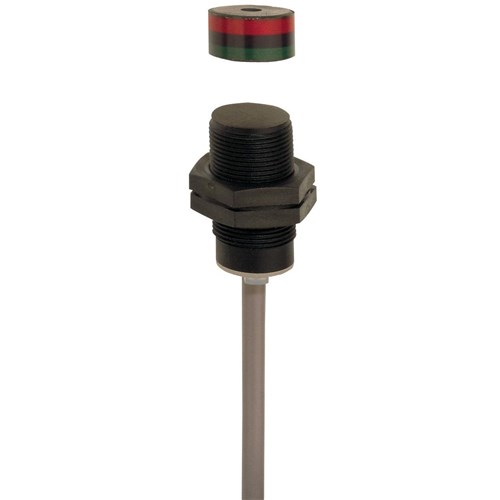

Schmersal 101133009 Magnetic Safety Sensor 1m Cable

Product Code: 101133009

  • Operates at 100 VAC and 0.25 A
  • Durable with 25 million cycle life
  • IP67 protection, robust in harsh conditions
  • Compact sensor size of 36 mm length
  • Glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 180

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
0.25A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BP 10; BP 15 SS; BP 8; BP 6
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
36mm
Weight
0.064kg
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
