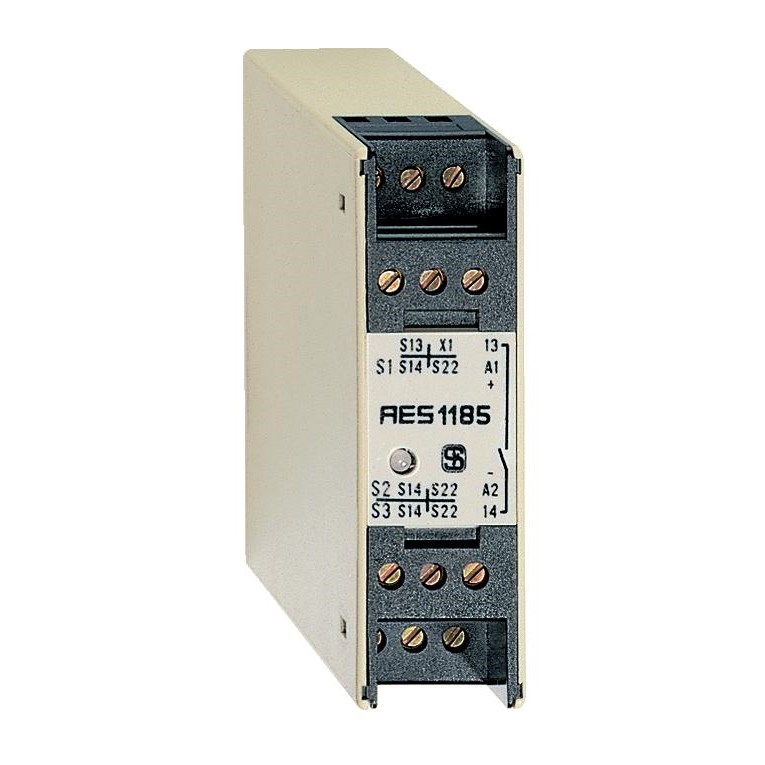

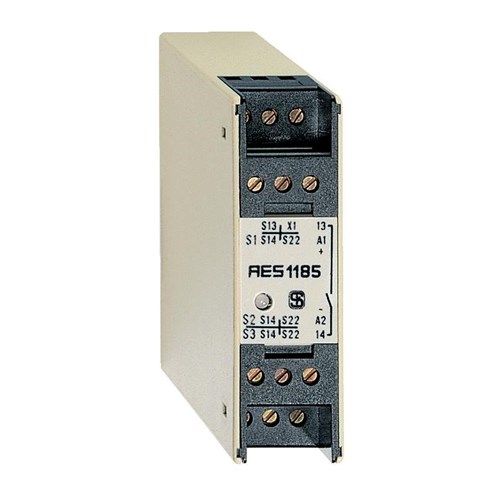

Schmersal 101131929 Safety Relay Module 26.4VAC, 28.8VDC

Product Code: 101131929

  • Operates at 26.4 VAC or 28.8 VDC
  • Supports up to 4 A current
  • Compact size: 22 mm x 75 mm x 110 mm
  • Durable with 50 million cycles lifespan
  • Robust IP20/IP40 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay Module
Brand
Schmersal
Series
AES 1185.3

Electrical

Switching Current
8:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V AC

Mechanical

Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
110 mm
Height
75 mm
Weight
150 g
Width
22.5 mm

Environmental

Operating Temperature
0 to 55 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Safe Relay Outputs, Stop 0
1
Safe Relay Outputs, Stop 1
0
Safety Category
3
Safety Integrity Level
SIL 2
Monitoring Circuit
Yes
Performance Level
PL d

Documents

IPD Product Catalogue V17
