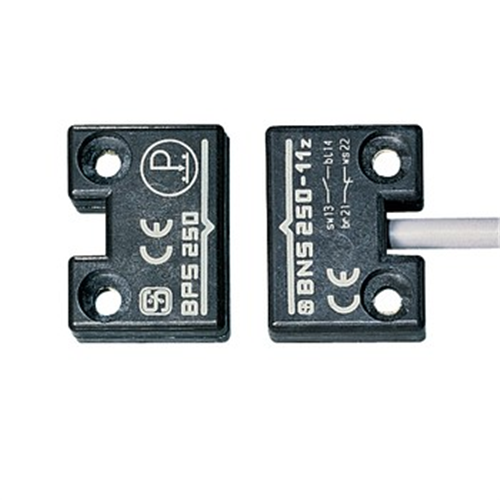

Schmersal 101130114 Safety Sensor 2m Cable

Product Code: 101130114

  • 24 VDC, 0.01 A, 0.24 W rated specs
  • IP67 protection for harsh environments
  • Durable with 25 million cycle life
  • Operates in -25 to 70°C range
  • Compact size: 13x33x25 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 250

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 250
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.085kg
Width
33mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
