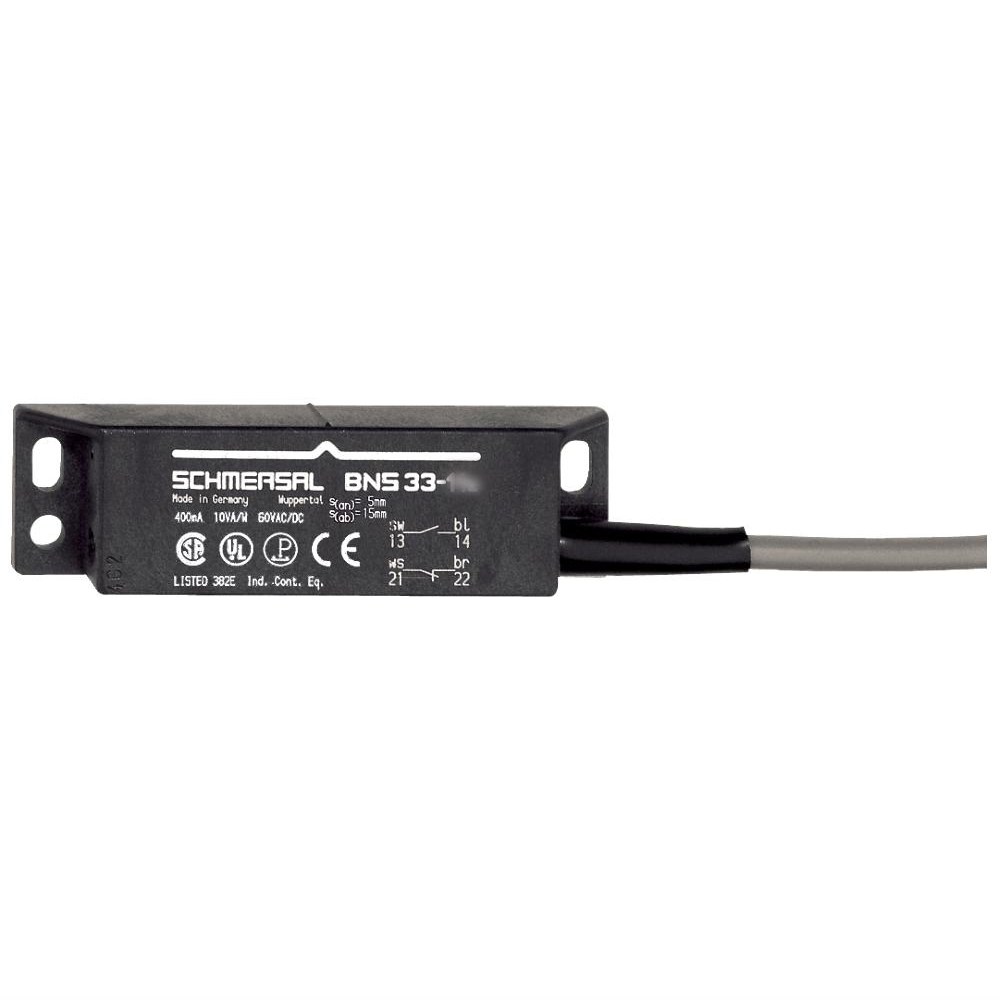

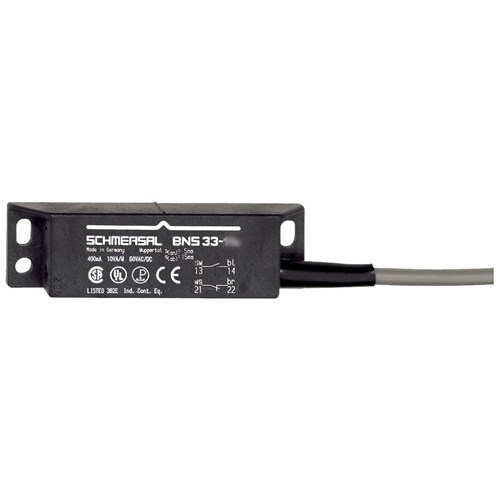

Schmersal 101128792 Magnetic Safety Sensor 1m Cable

Product Code: 101128792

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP67 rating
  • Operates in -25 to 70°C temperature range
  • Long mechanical life of 25 million cycles
  • Compact sensor size: 13x88x25 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 33

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
0.25A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 33; BPS 33-2326
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.07kg
Width
88mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
