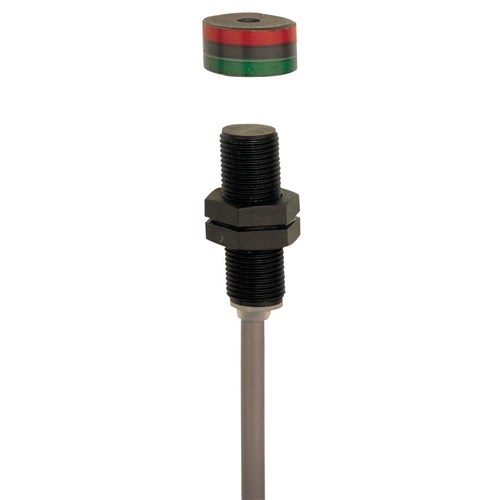

Schmersal 101128297 Magnetic Safety Sensor 1m Cable

Product Code: 101128297

  • Operates at 100 VAC with 0.25 A current
  • Durable with 25 million mechanical cycles
  • IP67 rated for excellent protection
  • Compact sensor size of 38.5 mm length
  • Withstands -25 to 70°C operational temp range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 120

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.25A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BP 10; BP 15 SS; BP 8; BP 6
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
38.5mm
Weight
0.05kg
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
