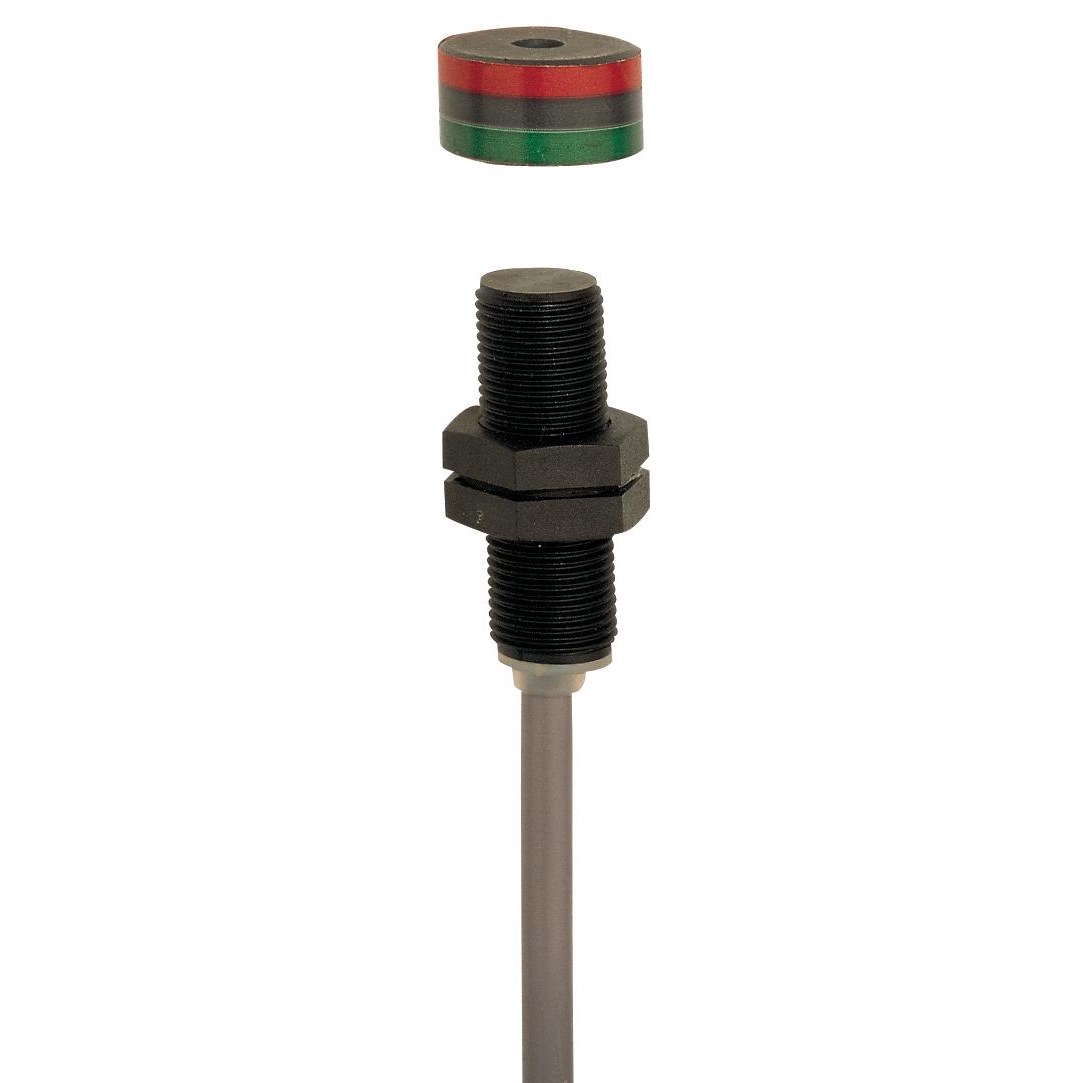

Schmersal 101128296 Magnetic Safety Sensor 1m Cable

Product Code: 101128296

  • Operates at 100 VAC, 0.25 A, and 3 W power
  • Durable with a mechanical life of 25 million cycles
  • IP67 rated for robust protection against dust and water
  • Functions in temperatures from -25 to 70°C
  • Compact design with a sensor size of 38.5 mm length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 120

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.25A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BP 10; BP 15 SS; BP 8; BP 6
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
38.5mm
Weight
0.059kg
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
