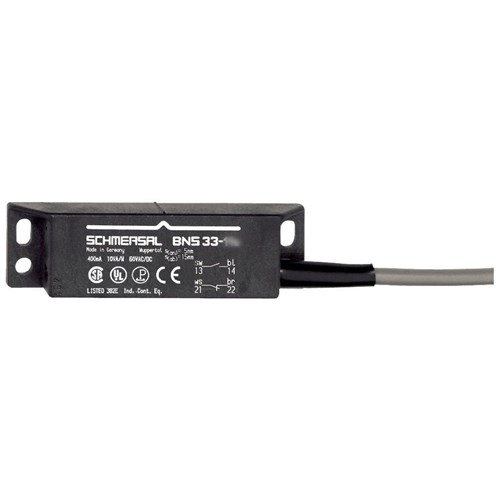

Schmersal 101128195 Magnetic Safety Sensor NO+NC

Product Code: 101128195

  • Compact design: 24mm L x 73.5mm H, 22mm width
  • Durable metal housing with IP67 protection
  • Magnet actuator with NO+NC contact config
  • Long mechanical life of 1 million cycles
  • Operates at up to 80°C temp
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 33

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.25A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 33; BPS 33-2326
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.065kg
Width
88mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
