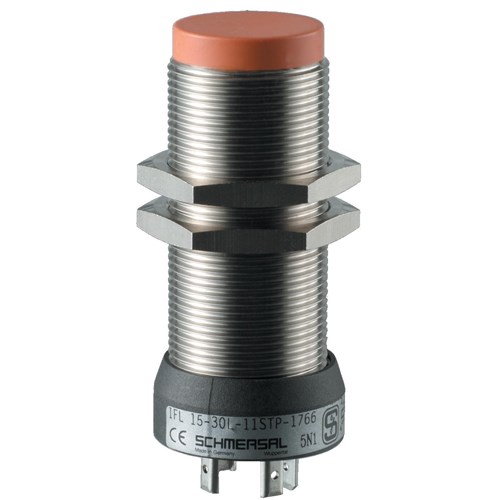

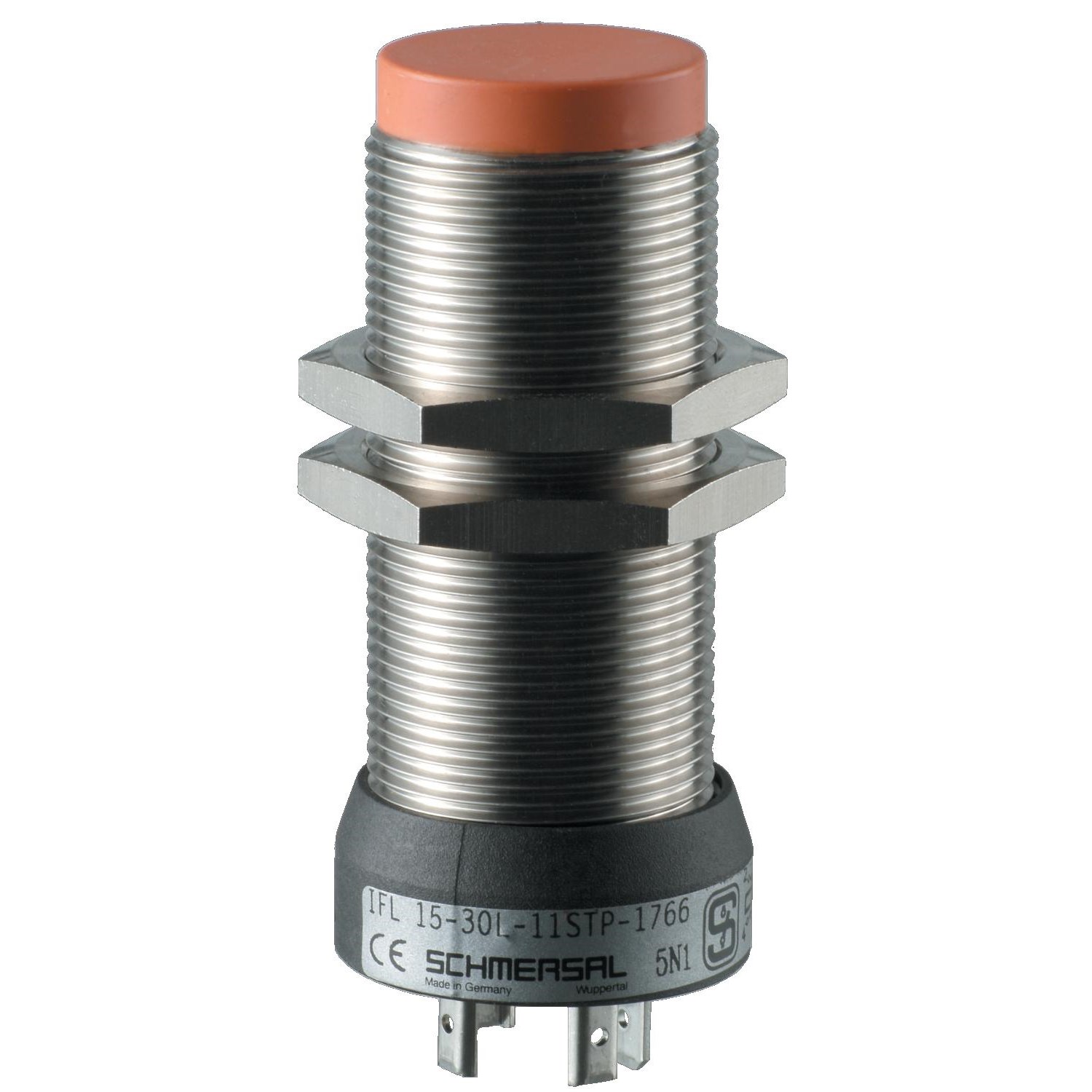

Schmersal 101127030 Inductive Proximity Switch

Product Code: 101127030

  • Threaded mounting for secure installation
  • Durable nickel-plated housing
  • IP67 rated for water and dust protection
  • High temp operation up to 110°C
  • Complies with DIN VDE & ENIEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Switch
Brand
Schmersal
Series
IFL - M30

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Switching Current
200mA, 400mA
Switching Voltage
10V to 60V DC
Type of Actuation
Inductive
Electrical Connection
Connector
Switching Distance
15mm

Mechanical

Material
Brass

Dimensions & Physical Data

Depth
78mm
Cable Length
2m

Environmental

Operating Temperature
0°C to 110°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
