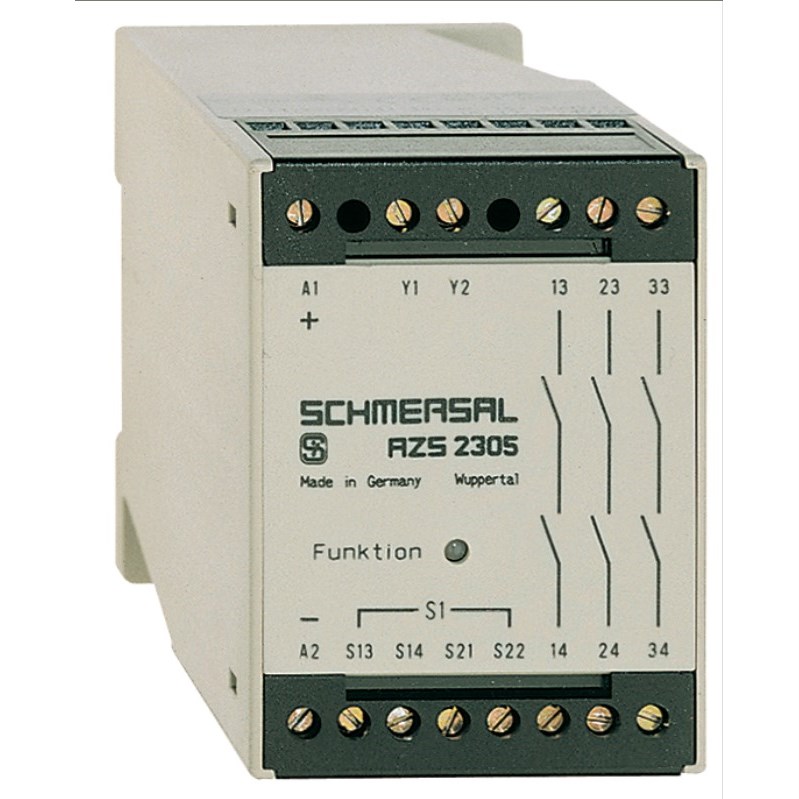

Schmersal 101126705 Safety Timer 230VAC

Product Code: 101126705

  • Operates at 230 VAC, 5 W power
  • DIN rail mount for easy installation
  • Sturdy glass fibre reinforced housing
  • IP40 protection against solid objects
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Timer
Brand
Schmersal
Series
AZS 2305.2

Electrical

Switching Current
8:00 AM
Switching Voltage
250 V AC
Supply Voltage
230 V AC

Mechanical

Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
110 mm
Height
75 mm
Weight
450 g
Width
55 mm

Environmental

Operating Temperature
0 to 55 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Semiconductor Outputs
2
Safe Relay Outputs, Stop 1
3
Safety Category
3
Safety Integrity Level
SIL 2
Monitoring Circuit
Yes
Performance Level
PL d

Documents

IPD Product Catalogue V17
