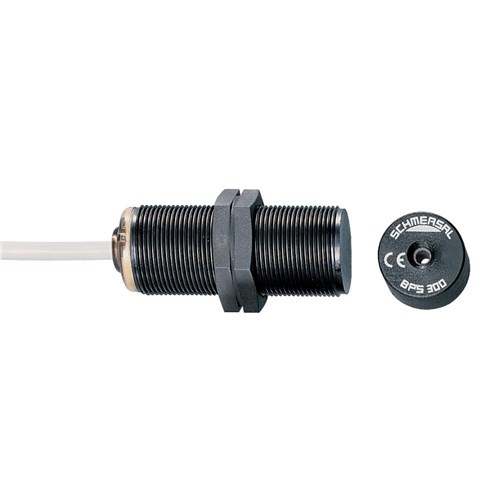

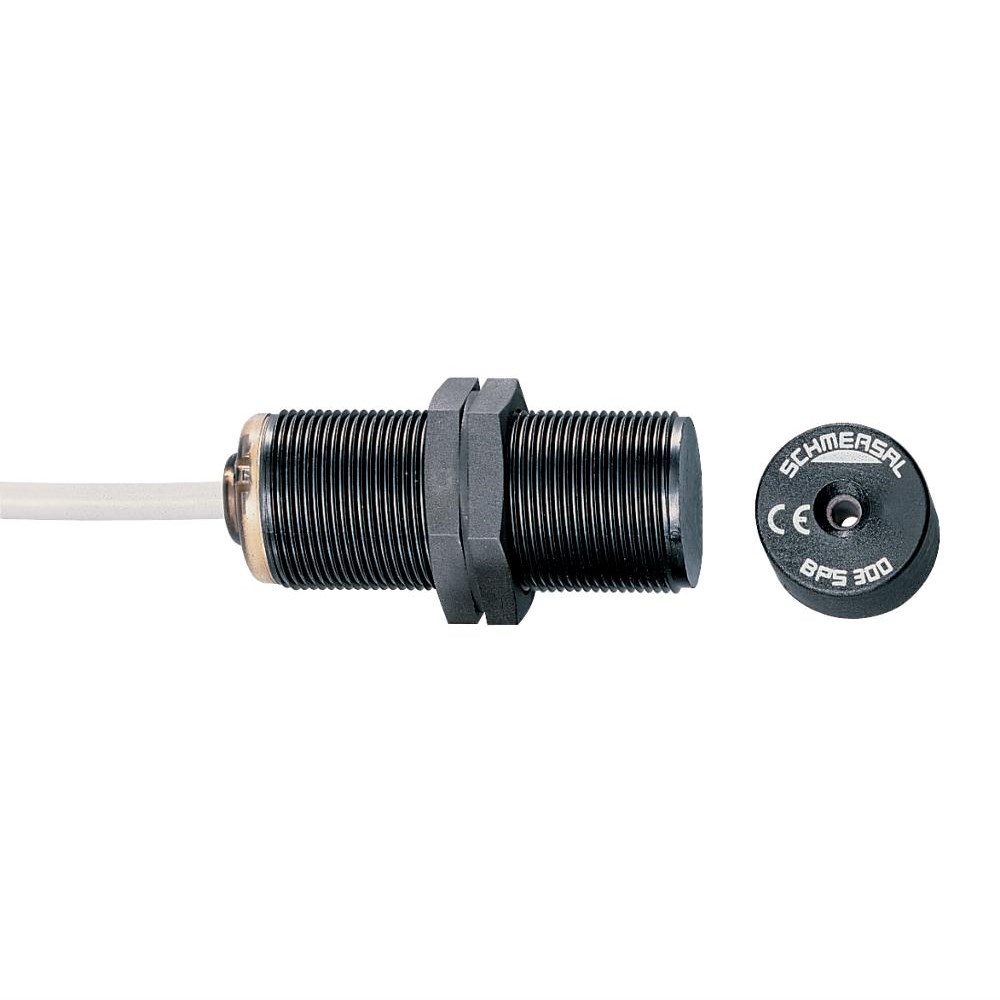

Schmersal 101123283 Magnetic Safety Sensor 5m Cable

Product Code: 101123283

  • Operates at 24 VDC and 3 A
  • Durable with 20M cycle lifespan
  • IP67 rated for superior protection
  • Compact design, 78 mm length
  • Reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 300

Electrical

No. of N/C Contacts
1
Rated Current (In)
3A(max.switching)
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 300, BPS 303, BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Weight
0.00038kg
Cable Length
5m

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 55°C

Documents

IPD Product Catalogue V17
