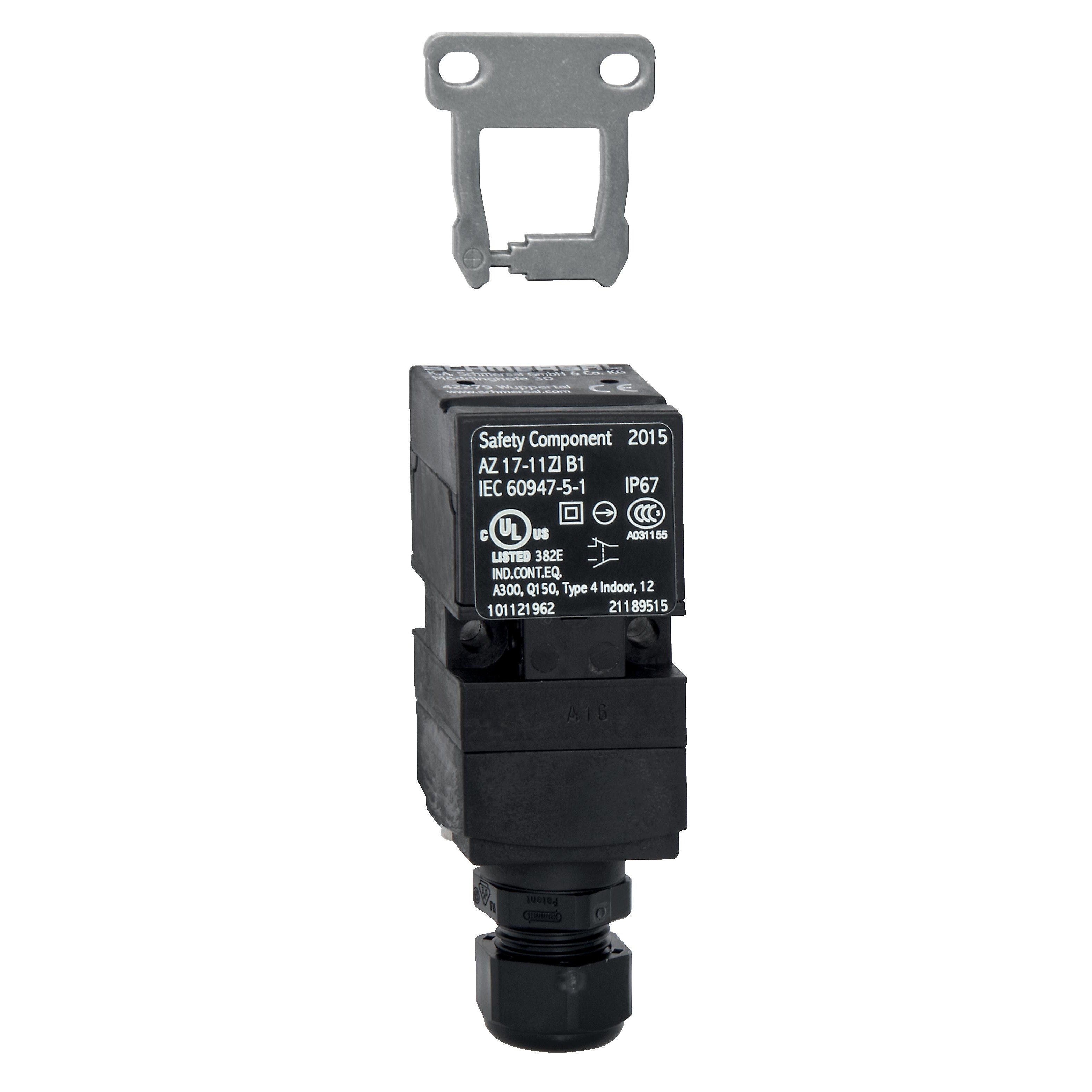

Schmersal 101122858 Safety Switch with Separate Actuator 230VAC 2NC

Product Code: 101122858

  • 230 VAC, 4A rated for reliable performance
  • Durable with 1 million mechanical cycles
  • IP67 protection against dust and water
  • Operates in -30 to 80°C temperature range
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
2
Terminal Type
IDC method of termination

Mechanical

Cable Entry
M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
85mm
Weight
0.1kg
Width
30mm

Environmental

IP Rating
IP67

Documents

IPD Product Catalogue V17
