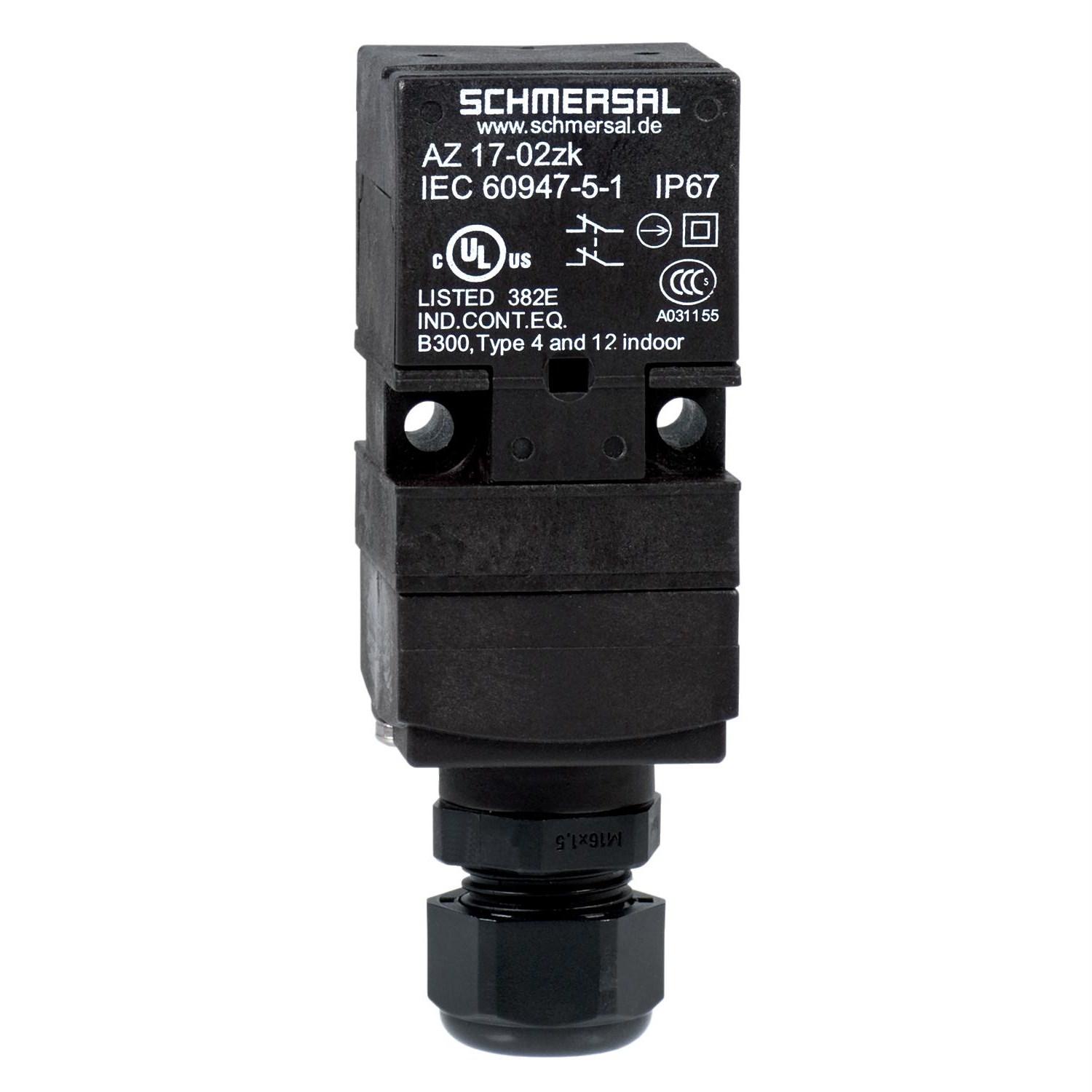

Schmersal 101121960 Safety Switch with Separate Actuator 1NO+1NC

Product Code: 101121960

  • Rated current of 1200 mA
  • Durable with 1 million mechanical cycles
  • IP67 protection for harsh environments
  • Operates from -30 to 80°C
  • Snap mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
IDC method of termination

Mechanical

Cable Entry
M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
60 mm
Weight
85 g
Width
30 mm

Environmental

Operating Temperature
-30 to 80 °C
IP Rating
IP67
