Solenoid interlock with metal enclosure Cut clamp termination and spring-loaded actuators Power to lock mechanism Single actuating direction Three auxiliary contacts and three safety contacts Suitable for two guard doors Screw connection terminal connector Both normally open (NO) and normally closed (NC) contact configurations available Thermal test current of 6 A

Specifications

Product Type

Magnetic Reed Switch

Brand

Schmersal

Series

BN 85-5

Configuration Type bistable contact	Switching Current 1:00 AM	Switching Voltage 60 V DC
Electrical Connection Connector, 10-pole

Material

Glass-fibre, reinforced thermoplastic

Depth 140 mm	Height 20 mm	Weight 106 g
Width 65 mm

Operating Temperature

-10 to 75 degC

IP Rating

IP30

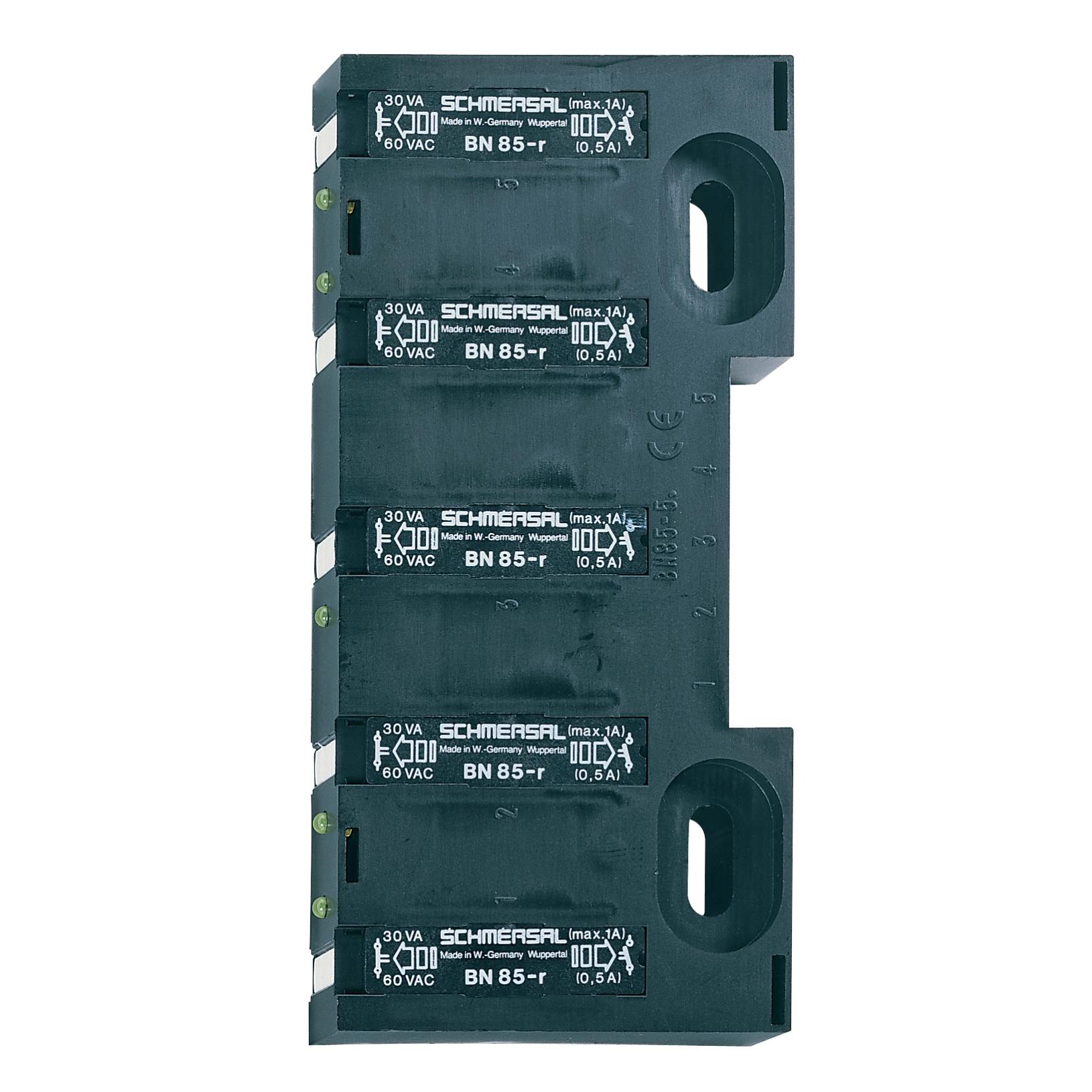

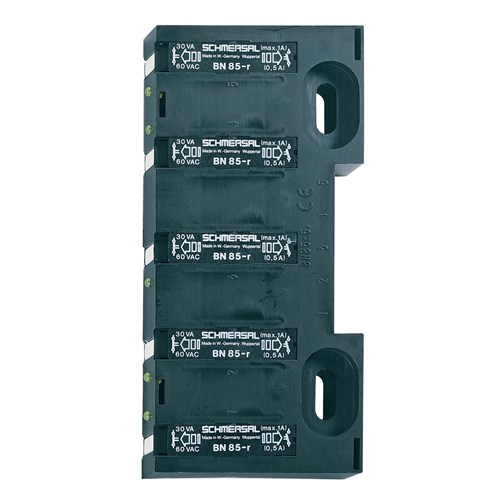

Schmersal 101118378 Magnetic Reed Switch
