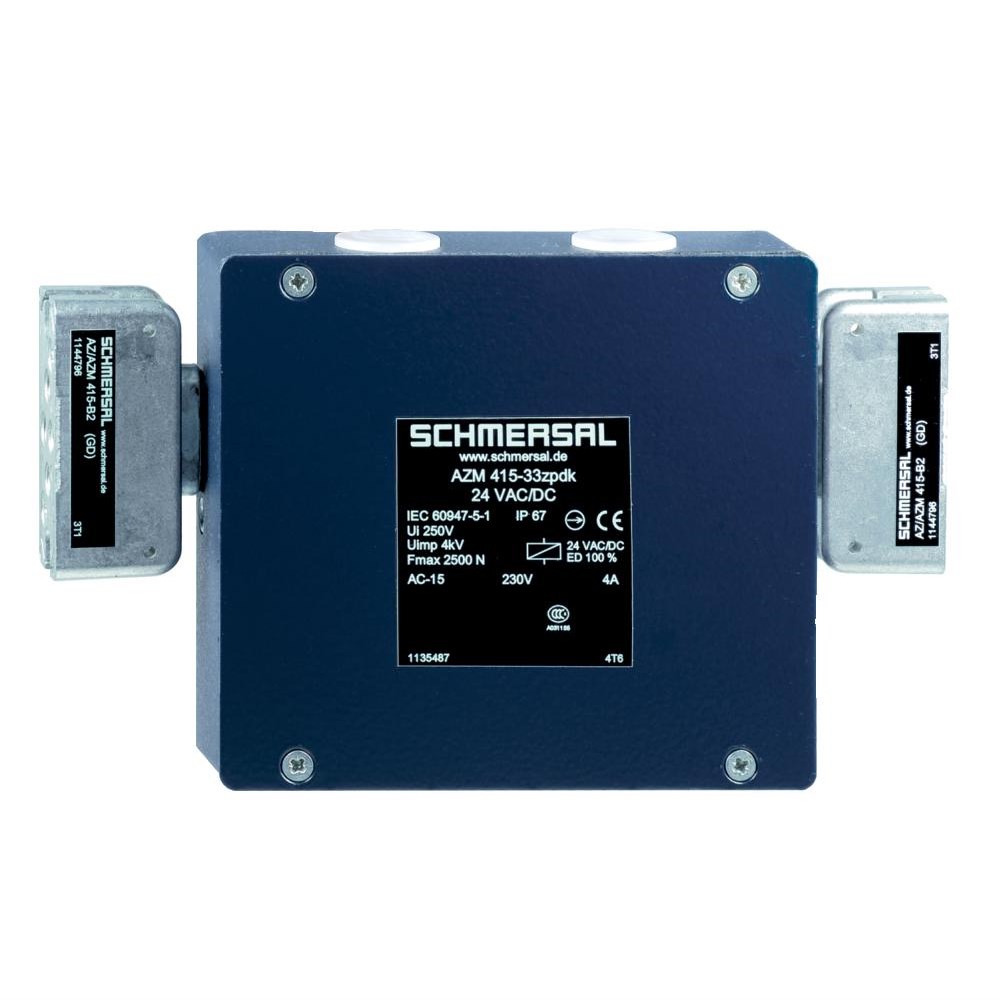

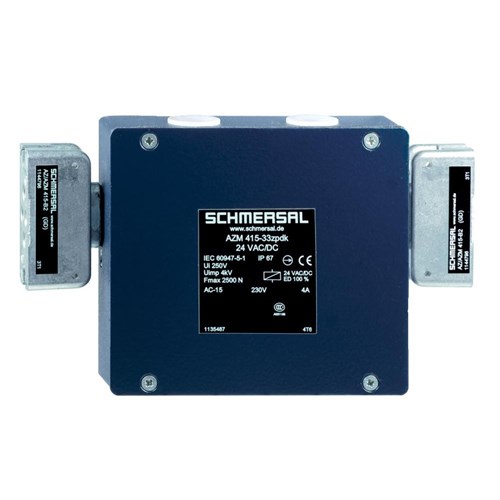

Schmersal 101117713 Solenid Interlock Switch 230VAC

Product Code: 101117713

  • Durable aluminium housing with IP67 protection
  • Operates efficiently at -25 to 50°C
  • Long-lasting with 1,000,000 mechanical cycles
  • Certified by cULus and UKCA standards
  • Slow action mechanism for precision control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
3
Rated Current (In)
0.25
Rated Voltage (Ur)
230 V AC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
2,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
125 mm
Weight
1,515 g
Width
141 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65
