Specifications

Product Type

Position Switch

Brand

Schmersal

Series

461

Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 250V	Switching Principle Snap action
Utilization Category AC-15 400 VAC / 4 A	Contact Configuration 2 NC + 2 NO	Mechanical Life 5,000,000 operations
Thermal Test Current 16A

Cable Cross Section 1.5mm² to 2.5mm²	Cable Entry Screw connection; 2 x M20 x 1.5 mm² cable entries	Contact Material Gold-plated silver (AgNi15 + Au 0.3 µm)
Housing Material Grey cast iron, galvanised; painted	Actuator / Operating Element Roller lever; plastic roller

Depth 248	Height 118	Weight 2.35kg
Width 64

IP Rating

IP65

Ambient Temperature

-30°C to 90°C

Standards and Approvals

DNV; EN IEC 60947-5-1

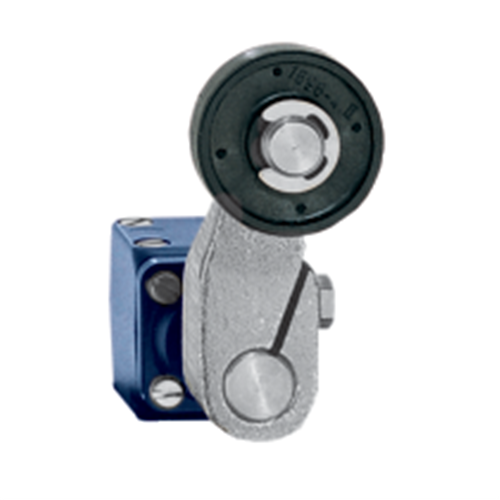

Schmersal 101116084 Position Switch
