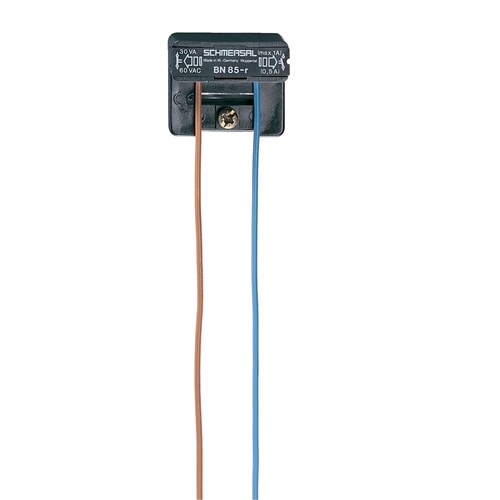

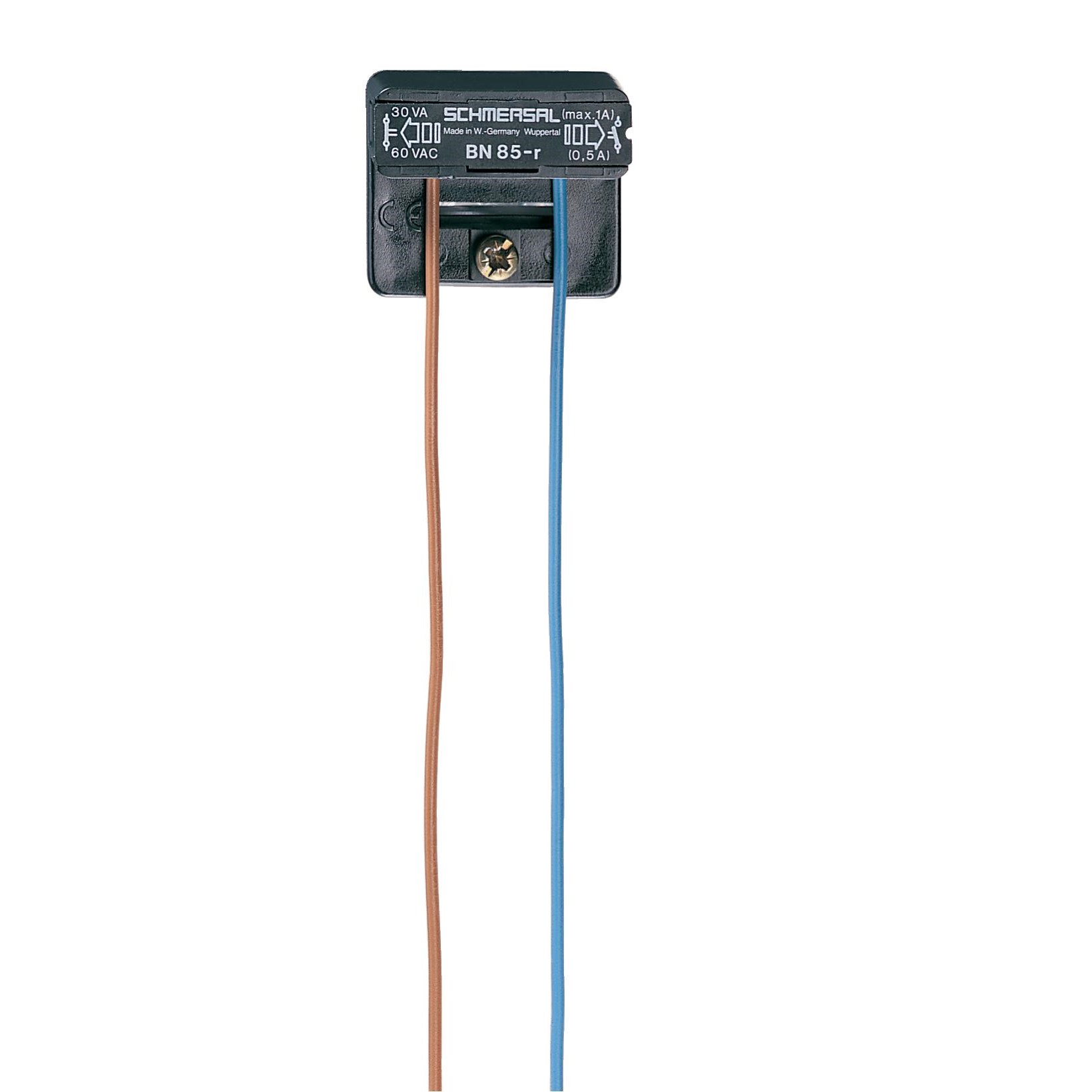

Schmersal 101114790 Magnetic Reed Switch 5m L Cable 1A BP 10 S Cable Terminal

Product Code: 101114790

  • 60 VDC, 1 A rated for reliable performance
  • Durable glass fibre reinforced thermoplastic housing
  • IP40 protection for indoor use
  • Operates efficiently from 0 to 75°C
  • Long mechanical life: 1 billion operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
BN 85

Electrical

Switching Current
1:00 AM
Switching Voltage
60 V AC, 60 V DC
Electrical Connection
Pre-wired cable

Mechanical

Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
16.5 mm
Height
35 mm
Weight
115 g
Width
40 mm
Cable Length
5 m

Environmental

Operating Temperature
0 to 75 degC
IP Rating
IP40

Documents

IPD Product Catalogue V17
