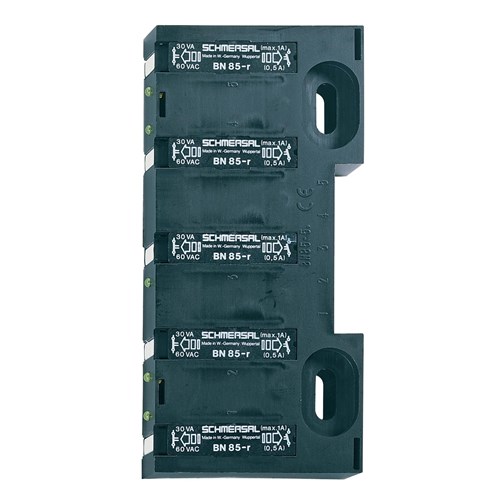

Schmersal 101110853 Magnetic Reed Switch 1A BP 7 Connector 10 Pole Terminal

Product Code: 101110853

  • 12 VDC, 1 A rated for efficient operation
  • Durable glass fibre reinforced thermoplastic housing
  • IP30 protection for indoor use
  • Operates in -10 to 75°C temperature range
  • Magnetic drive with reed contacts for reliable switching
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
BN 85-5

Electrical

Configuration Type
bistable contact
Switching Current
1:00 AM
Switching Voltage
60 V DC
Electrical Connection
Connector, 10-pole

Mechanical

Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
140 mm
Height
20 mm
Weight
136 g
Width
65 mm

Environmental

Operating Temperature
-10 to 75 degC
IP Rating
IP30

Documents

IPD Product Catalogue V17
