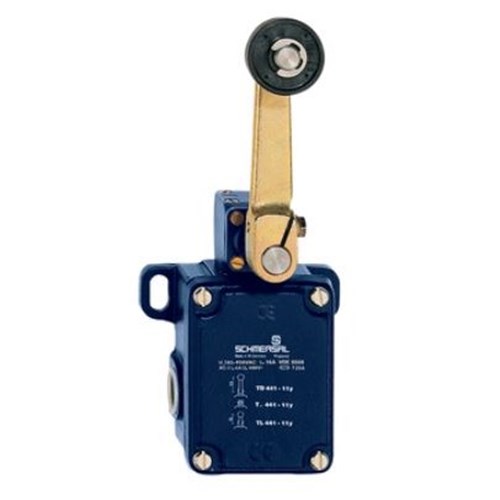

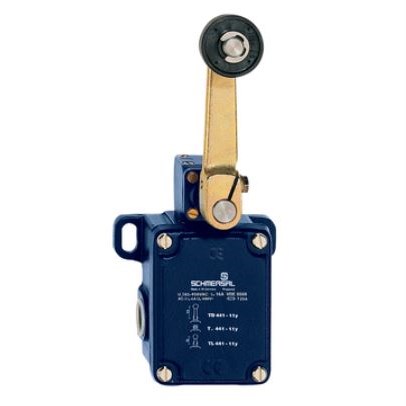

Schmersal 101109500 Position Switch

Product Code: 101109500

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Slow action, double break
Utilization Category
AC-15 250 VAC / 4 A
Contact Configuration
1 NC + 1 NO
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Cross Section
1.5mm² to 2.5mm²
Cable Entry
Screw connection; 2 x M20 x 1.5 mm² cable entries
Contact Material
Silver
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Roller lever; brass roller

Dimensions & Physical Data

Depth
237
Height
106
Weight
1.068kg
Width
63

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 200°C

Safety, Standards & Compliance

Standards and Approvals
CCC; DNV; EN IEC 60947-5-1

Documents

IPD Product Catalogue V17
