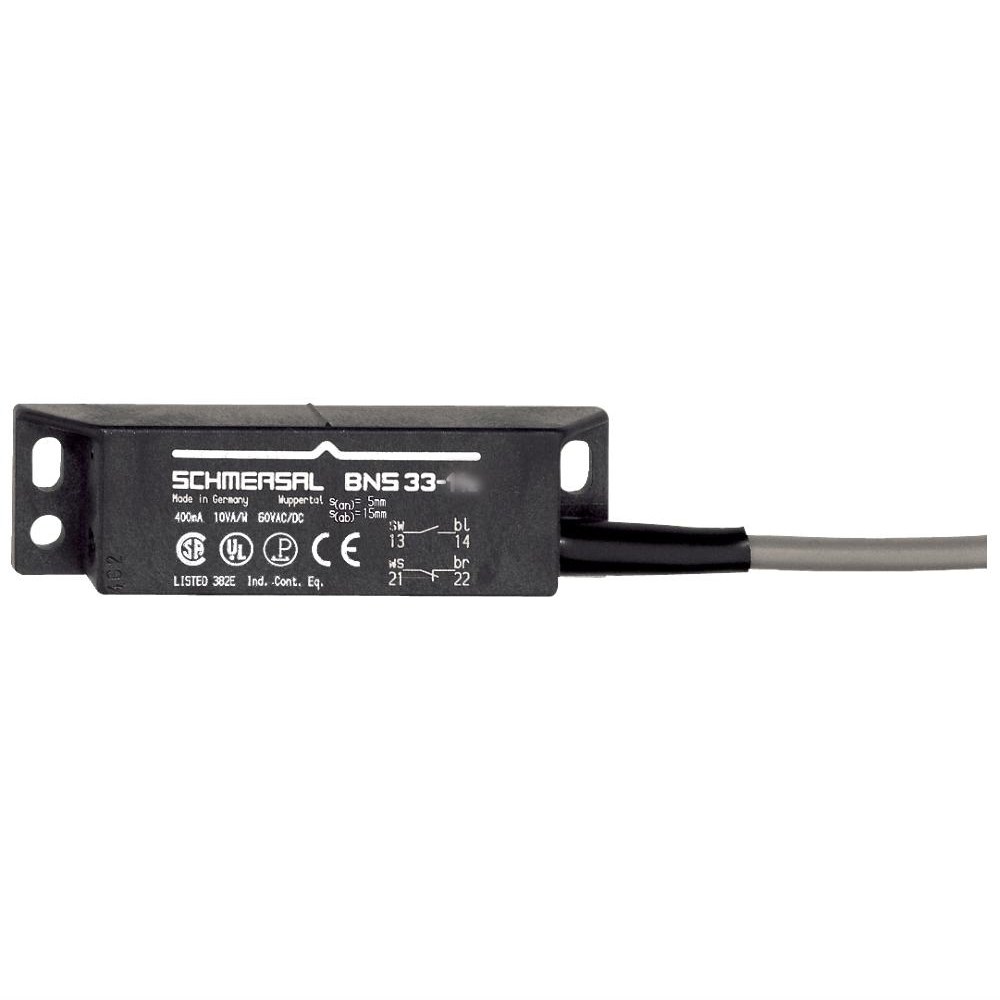

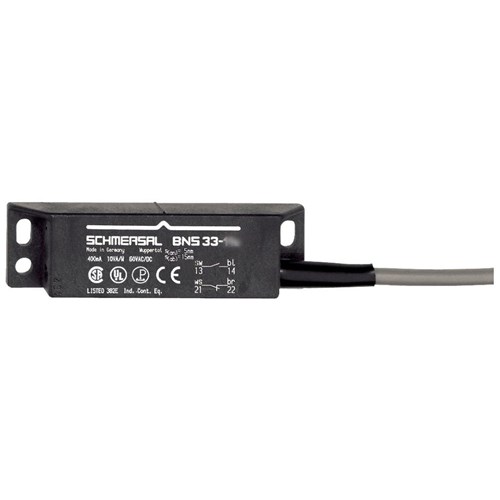

Schmersal 101109396 Magnetic Safety Sensor 1NO+1NC 2m Cable

Product Code: 101109396

  • 1NO+1NC contact config for versatile use
  • IP67 rated for robust protection
  • Glass fibre reinforced thermoplastic housing
  • Operates up to 70°C with magnet actuation
  • Compact size: 13mm L x 88mm W x 25mm H
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 33

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.01A

Mechanical

Actuator Type
BPS 33; BPS 33-2326
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.096kg
Width
88mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
