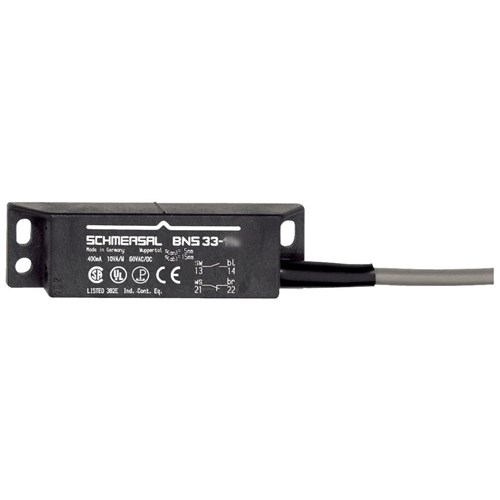

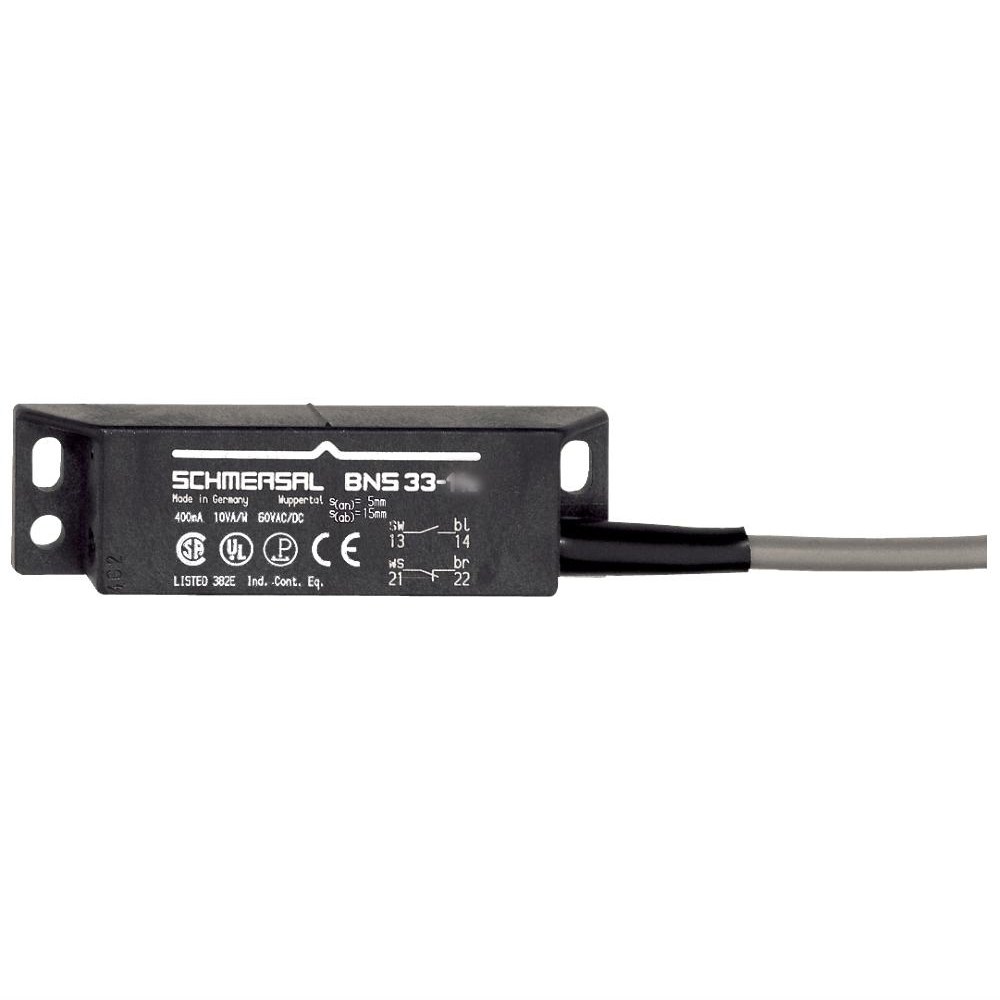

Schmersal 101107770 Magnetic Safety Sensor 1m Cable

Product Code: 101107770

  • Operates at 100 VAC, 0.4 A, and 10 W
  • Durable with 25 million cycle lifespan
  • Compact size: 13mm L x 88mm W x 25mm H
  • IP67 protection for harsh environments
  • Withstands -25 to 70°C operational range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 33

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.4A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 33; BPS 33-2326
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.07kg
Width
88mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
