Normally open (NO), normally closed (NC), and bistable contacts Actuated with magnets, with or without enclosure Different switching distances depending on the strength of the magnet Can feature very long lifetimes when appropriately fitted and maintained Noncontact, lowforce operated switches Hysteresis in switchon and switchoff points Can switch different currents with different voltages High contact reliability due to enclosed glass tube for protection Enclosures made of thermoplastic, available in different shapes for various applications Fitted with mounting holes, threaded bolts, screwed flanges, or on Crails

Specifications

Product Type

Magnetic Reed Switch

Brand

Schmersal

Series

BN 75

Configuration Type changeover contact (NO/NC)	No. of N/C Contacts 1	No. of N/O Contacts 1
Switching Current 1:00 AM	Switching Voltage 220 V AC	Electrical Connection Pre-wired cable

Material

Glass-fibre, reinforced thermoplastic

Depth 55 mm	Height 99.5 mm	Weight 250 g
Width 80 mm	Cable Length 3 m

Operating Temperature

-25 to 80 degC

IP Rating

IP67

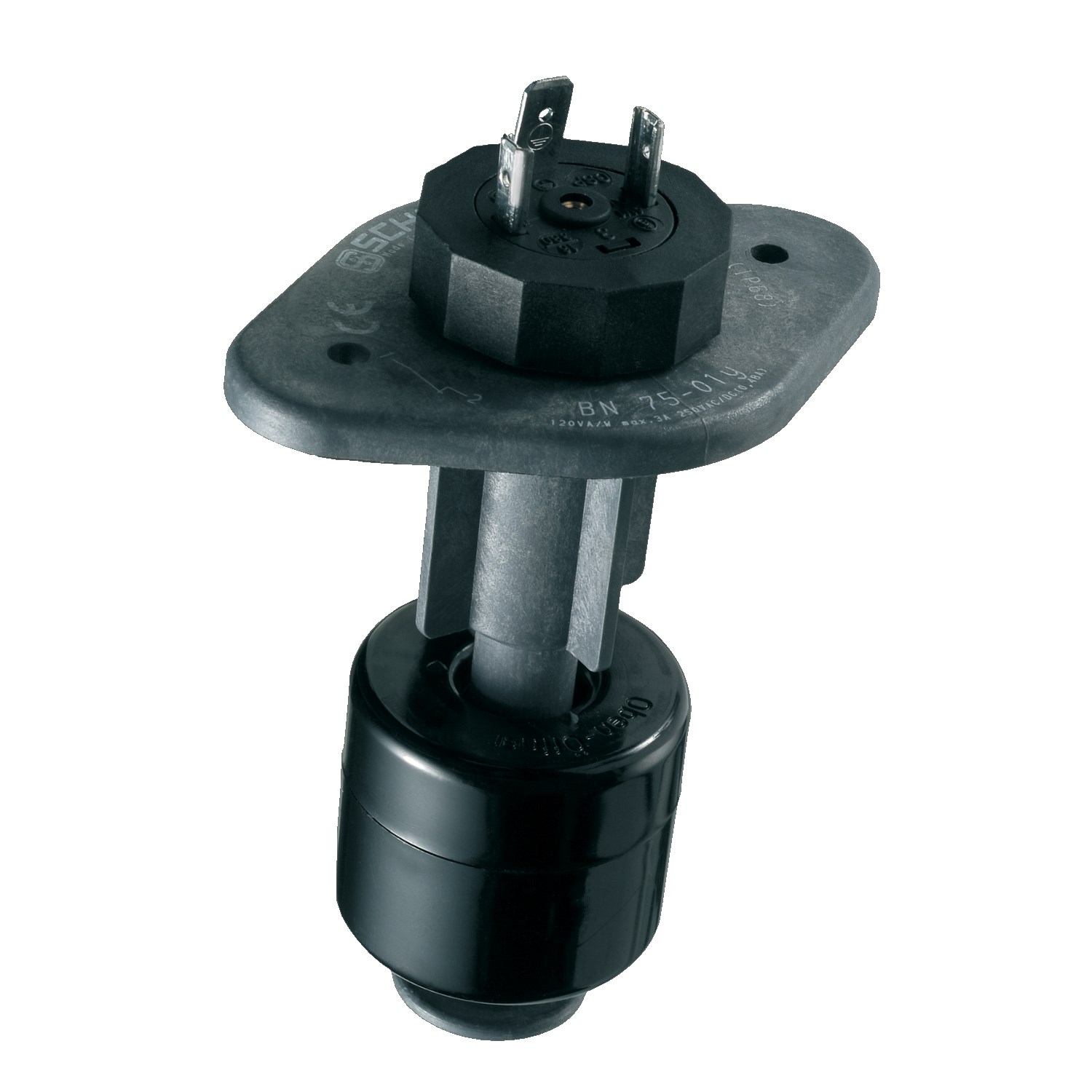

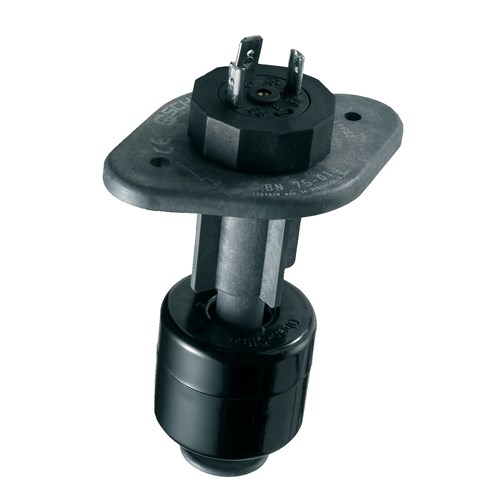

Schmersal 101102172 Magnetic Reed Switch
