Normally open (NO), normally closed (NC), and bistable contacts Actuated with magnets, with or without enclosure Different switching distances depending on the strength of the magnet Can feature very long lifetimes when appropriately fitted and maintained Noncontact, lowforce operated switches Hysteresis in switchon and switchoff points Can switch different currents with different voltages High contact reliability due to enclosed glass tube for protection Enclosures made of thermoplastic, available in different shapes for various applications Fitted with mounting holes, threaded bolts, screwed flanges, or on Crails

Specifications

Product Type

Magnetic Reed Switch

Brand

Schmersal

Series

BN 65

Switching Current

1:00 AM

Switching Voltage

230 V AC, 230 V DC

Electrical Connection

Pre-wired cable

Material

Glass-fibre, reinforced thermoplastic

Depth

103 mm

Weight

250 g

Cable Length

5 m

Operating Temperature

-25 to 75 degC

IP Rating

IP67

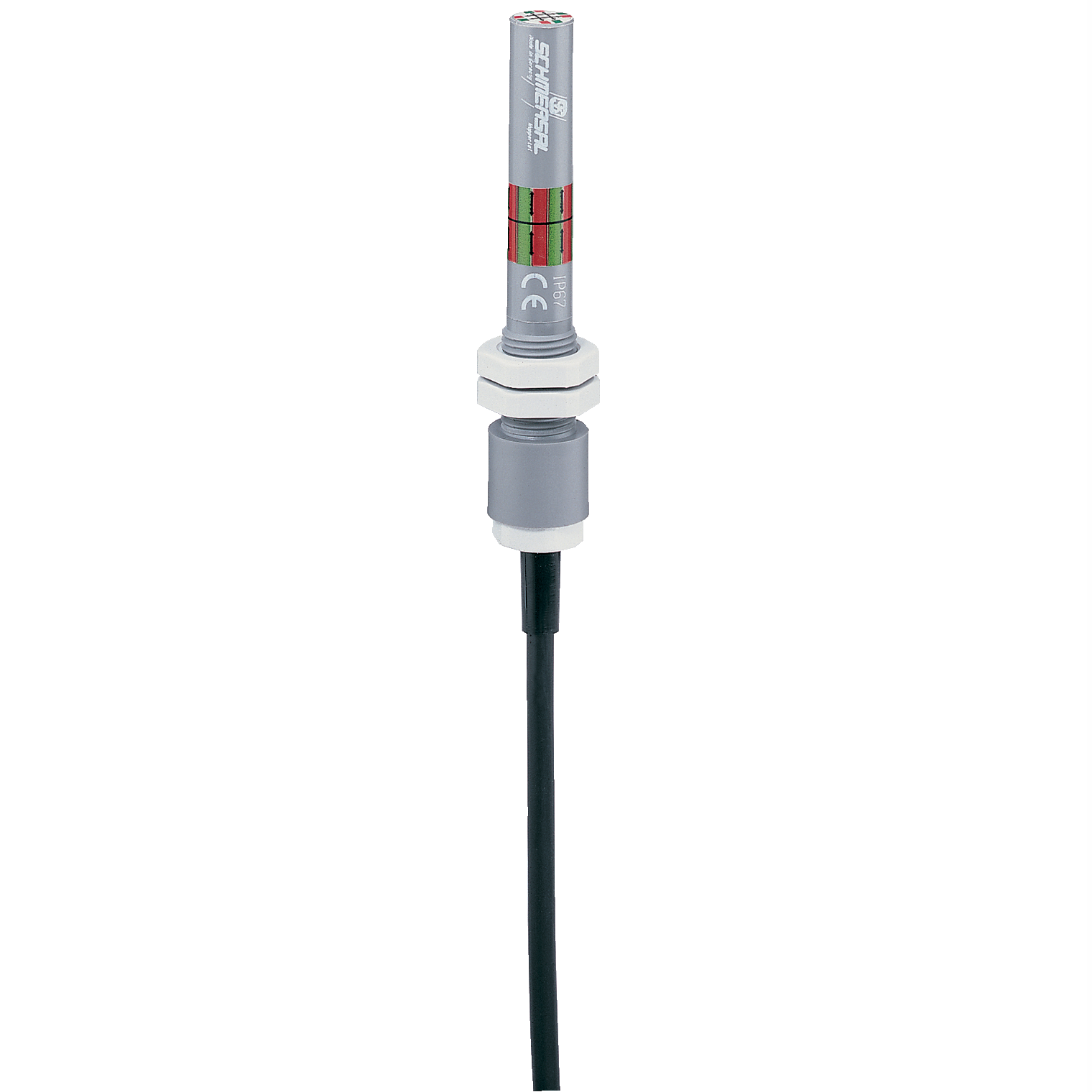

Schmersal 101101746 Magnetic Reed Switch
