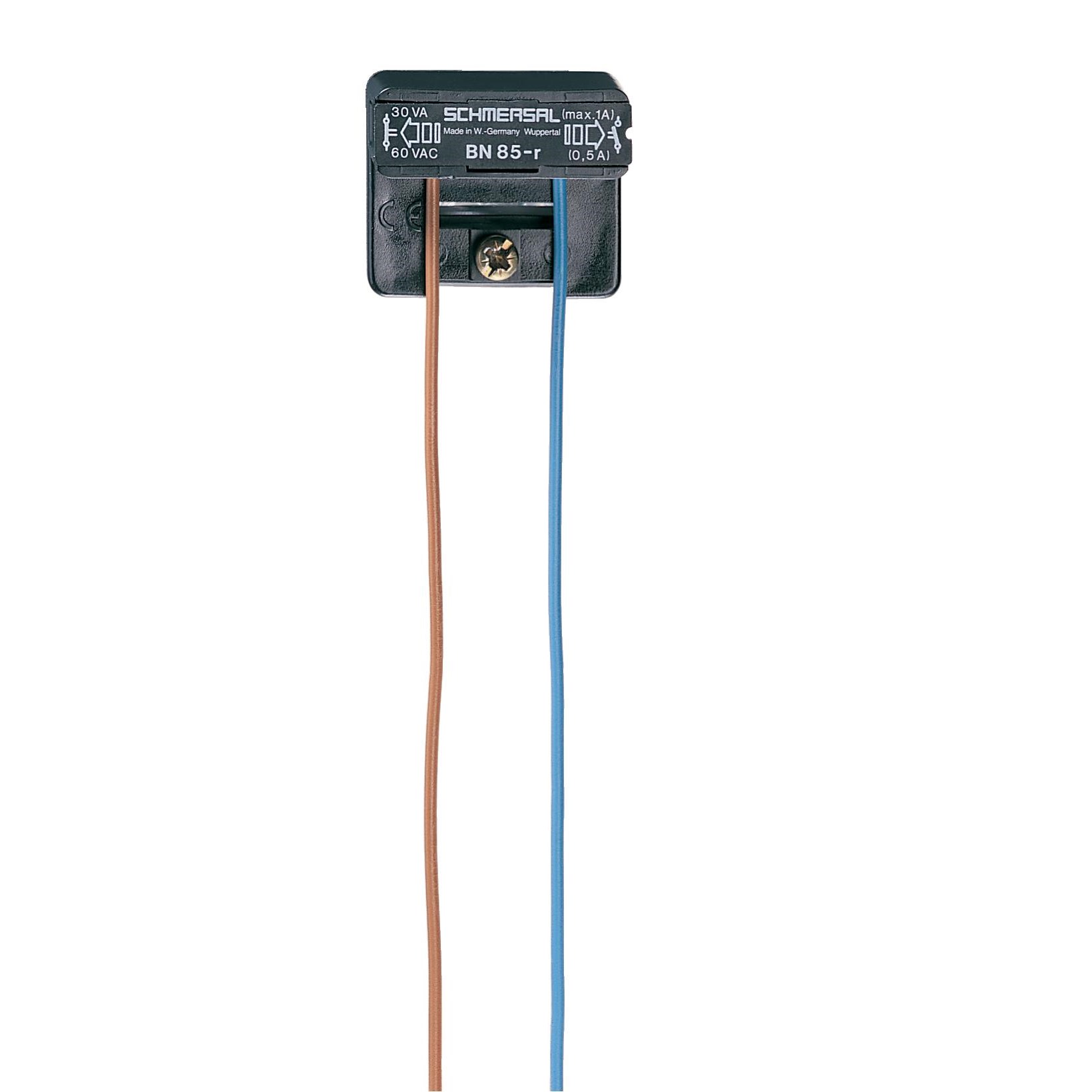

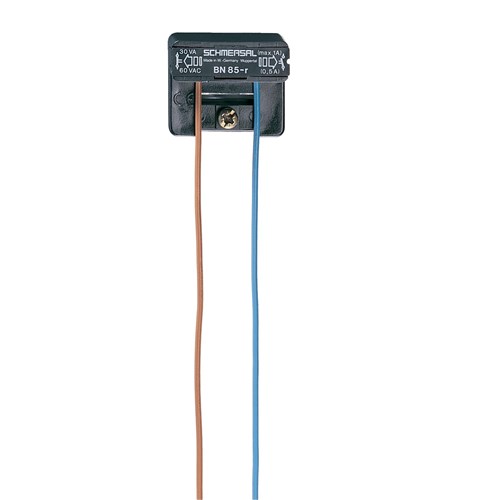

Schmersal 101101624 Magnetic Reed Switch 1m L Cable 1A BP 10 S Cable Terminal

Product Code: 101101624

  • Rated for 60 VDC and 1 A
  • Glass fibre reinforced thermoplastic housing
  • IP40 protection rating
  • Operates in 0 to 75°C range
  • Magnetic drive switching type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
BN 85

Electrical

Switching Current
1:00 AM
Switching Voltage
60 V AC, 60 V DC
Electrical Connection
Pre-wired cable

Mechanical

Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
16.5 mm
Height
35 mm
Weight
43 g
Width
40 mm
Cable Length
1 m

Environmental

Operating Temperature
0 to 75 degC
IP Rating
IP40
